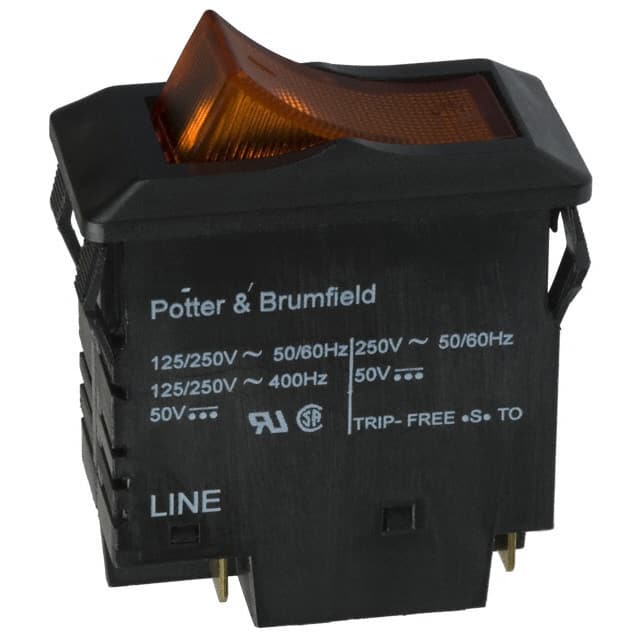

W33-T4B1Q-15 The TE Connectivity W33-T4B1Q-15 is a thermal circuit breaker designed for panel mounting. It features a 15A current rating and a 250VAC voltage rating.
Mfr Part #:

W33-T4B1Q-15

Mfr Name: TE Connectivity
TE Connectivity
The TE Connectivity W33-T4B1Q-15 is a thermal circuit breaker designed for panel mounting. It features a 15A current rating and a 250VAC voltage rating.
Stock on Request

W33-T4B1Q-15 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Type
Breaker Type
Current Rating
Current Rating (Amps)
Illumination
Illumination Voltage (Nominal)
Mounting Type
Number of Poles
SVHC Present
Voltage Rating
View Similar Products (0)

W33-T4B1Q-15 Description

Short technical summary and product information.

This TE Connectivity W33-T4B1Q-15 is a thermal circuit breaker with a current rating of 15A and a voltage rating of 250VAC. It is designed for panel mount applications and features a rocker actuator.



The breaker has two poles and includes amber illumination with a nominal voltage of 120V. It is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1.



This component is suitable for applications requiring reliable overcurrent protection. Its panel mount design facilitates integration into various electrical enclosures and control panels.

W33-T4B1Q-15 Quick Information

Product Type: Circuit Breaker
Series: W33
Canonical Name: TE Connectivity W33-T4B1Q-15 Thermal Circuit Breaker
Subcategory: Thermal

W33-T4B1Q-15 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

W33-T4B1Q-15 Features

  • 15A current rating for protection.
  • 250VAC voltage rating.
  • Panel mount design.
  • Rocker actuator type.
  • Amber illumination included.

W33-T4B1Q-15 Applications

  • Ideal for overcurrent protection in industrial control panels.
  • Used in HVAC systems and distribution equipment.
  • Suitable for motors and lighting circuits.
  • Applied in marine and automotive electronics.

W33-T4B1Q-15 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the current rating?

15A

What is the voltage rating?

250V AC (50V DC also specified)

What type of circuit breaker is this?

Thermal

How many poles does it have?

2

What is the actuator type?

Rocker

Does it have illumination?

Yes, amber illumination at 120V nominal

What is the mounting type?

Panel mount
