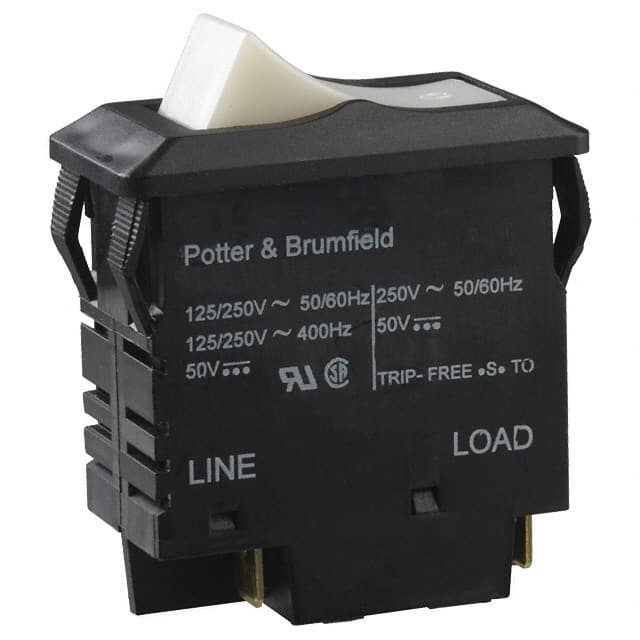

W33-T2N1Q-20 Thermal circuit breaker rated 20A at 250VAC and 50VDC. Features 2 poles, rocker actuator, and panel mount.
Mfr Part #:

W33-T2N1Q-20

Mfr Name: TE Connectivity
TE Connectivity
Thermal circuit breaker rated 20A at 250VAC and 50VDC. Features 2 poles, rocker actuator, and panel mount.
Stock on Request

W33-T2N1Q-20 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Type
Breaker Type
Current Rating
Current Rating (Amps)
Mounting Type
Number of Poles
Voltage Rating
View Similar Products (0)

W33-T2N1Q-20 Description

Short technical summary and product information.

The W33-T2N1Q-20 is a thermal circuit breaker from TE Connectivity. It is rated for 20A continuous current with a voltage rating of 250VAC and 50VDC. The breaker uses a thermal mechanism for overcurrent protection, automatically resetting after cooling. It features a rocker actuator for manual on/off control and has 2 poles for switching both lines. The device is designed for panel mount installation, making it suitable for control panels, power distribution units, and industrial equipment. Its compact design and reliable thermal trip characteristic provide consistent protection against overloads.

W33-T2N1Q-20 Quick Information

Product Type: Circuit Breaker
Canonical Name: Thermal Circuit Breaker, 20A, 250VAC/50VDC, 2-Pole, Rocker Actuator, Panel Mount
Subcategory: Thermal Circuit Breaker

W33-T2N1Q-20 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

W33-T2N1Q-20 Features

  • Rated for 20A continuous current.
  • Operates at 250VAC and 50VDC.
  • Thermal overcurrent protection mechanism.
  • 2-pole switching with rocker actuator.
  • Panel mount design for easy installation.

W33-T2N1Q-20 Applications

  • Ideal for power distribution panels.
  • Used in industrial control cabinets.
  • Suitable for DC power systems.
  • Provides overload protection in equipment.

W33-T2N1Q-20 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the operating voltage of the W33-T2N1Q-20?

250VAC and 50VDC.

What is the current rating of the W33-T2N1Q-20?

20A.

What type of circuit breaker is the W33-T2N1Q-20?

Thermal.

How many poles does the W33-T2N1Q-20 have?

2.

What is the actuator type of the W33-T2N1Q-20?

Rocker.

What is the mounting type of the W33-T2N1Q-20?

Panel Mount.

W33-T2N1Q-20 Alternate Parts

Same form/fit/function or matching attribute configuration across different manufacturers.
View All Alternate Parts
W33-S4B1Q-20
W33-S4B1Q-20
TE Connectivity
TE Connectivity W33-S4B1Q-20 is a thermal circuit breaker rated for 20A and 250VAC. It features a panel mount design.
View Part
3120-F303-N7Q1-U04X-20A
3120-F303-N7Q1-U04X-20A
ETA
The E-T-A 3120-F303-N7Q1-U04X-20A is a 2-pole thermal circuit breaker with a 20A current rating and 250VAC voltage rating. It features a rocker actuator and panel mount design.
View Part
3120-F501-G7Q1-W02D-20A
3120-F501-G7Q1-W02D-20A
ETA
The E-T-A 3120-F501-G7Q1-W02D-20A is a two-pole thermal circuit breaker with a 20A current rating and 250VAC voltage rating. It features a rocker actuator and panel mount design.
View Part
3120-F321-P7T1-W04K-20A
3120-F321-P7T1-W04K-20A
ETA
The E-T-A 3120-F321-P7T1-W04K-20A is a two-pole thermal circuit breaker with a 20A current rating and 250V voltage rating. It features a rocker actuator and panel mount design.
View Part
