| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
761 pcs
|
761 pcs | On Request | 1 | On Request | On Request | On Request | On Request | 2026-02-16 21:33:16 |
| Category | |
| Manufacturer Name | |
| Antenna Type | |
| Frequency (Center | |
| Frequency Group | |
| Frequency Range | |
| Gain | |
| Height | |
| Height (Max) | |
| Impedance | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Bands | |
| Operating Temperature | |
| Return Loss | |
| Storage Temperature | |
| Tape & Reel | |
| Termination | |
| Termination Style |

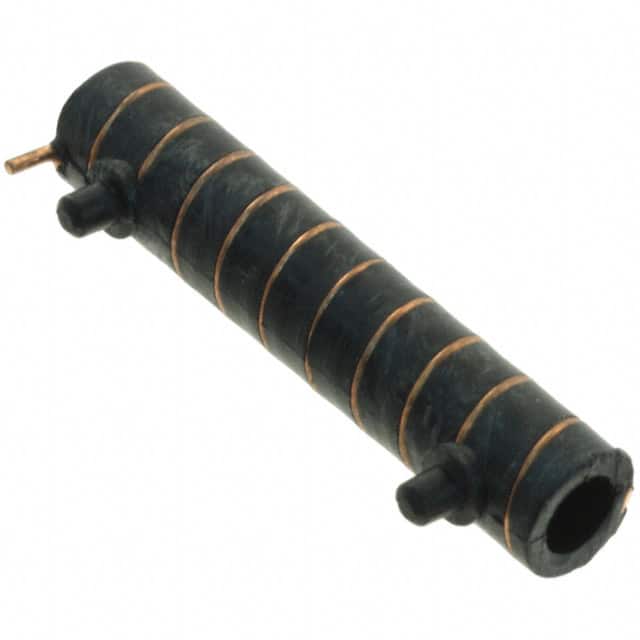

The Pulse Electronics W3127 is a helical antenna operating in the 433MHz ISM band. It is designed for applications such as remote controls and toys.
This antenna has a frequency range of 433-435 MHz, a maximum gain of -2.9 dBi, and a minimum return loss of -15 dB. The impedance is 50 Ohms. It is designed for through-hole mounting and features a solder termination.
The antenna has a helix size of length 35.35mm and a diameter of 7mm, with a low weight of 1.8g. It requires a ground clearance area of 8.50x40.00 mm on the PWB. The operating temperature range is -40 to +85 °C.
It is RoHS3 compliant and has an MSL of 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The W3127 antenna operates in the frequency range of 433 MHz to 435 MHz.
The W3127 antenna has a maximum gain of -2.9 dBi.
The W3127 antenna has a minimum return loss of -15 dB.
The W3127 antenna is designed for through-hole mounting.
The W3127 antenna can operate in temperatures ranging from -40 to +85 °C.
