W31-X1005-5
TE Connectivity
The TE Connectivity W31-X1005-5 is a thermal circuit breaker designed for panel mounting. It features a 5A current rating and a 240VAC voltage rating.
| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Mounting Type | |
| Number of Poles | |
| Voltage Rating |

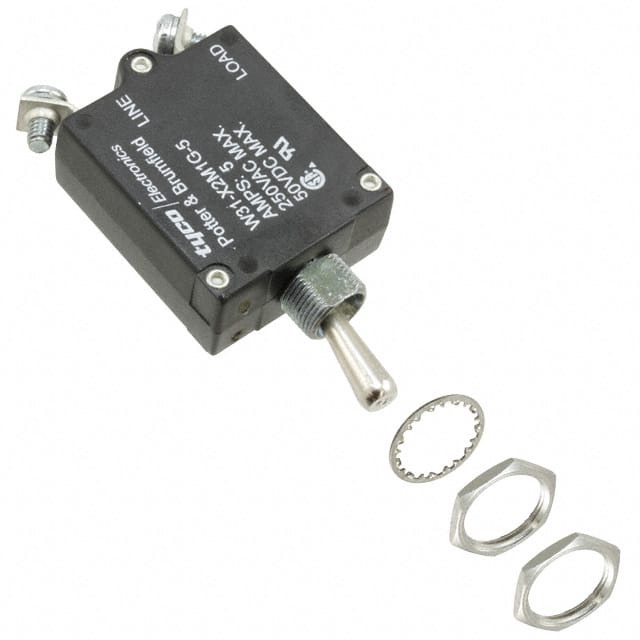

This TE Connectivity W31-X2M1G-5 is a thermal circuit breaker designed for circuit protection applications. It has a current rating of 5A and a voltage rating of 240VAC, with a DC voltage rating of 50VDC. The breaker type is thermal, and it features a single pole configuration. The actuator type is a toggle, providing a clear visual indication of its state. Mounting is achieved via a panel mount design, making it suitable for integration into various enclosures and panels.
This component is compliant with RoHS3 standards and has an MSL rating of 1, indicating unlimited moisture sensitivity. The REACH status is unaffected. Its primary function is to protect electrical circuits from overcurrent and short circuits through thermal tripping mechanisms. The panel mount capability and toggle actuator make it user-friendly for manual operation and status checking in control panels and equipment.
Key electrical characteristics include its 5A current carrying capacity and 240VAC operational voltage. The thermal tripping mechanism ensures reliable protection against sustained overloads. The single-pole design is suitable for single-phase circuits or DC applications within its voltage limits. The toggle actuator allows for easy resetting after a trip event.
The W31-X2M1G-5 is rated for 240VAC and 50VDC.
The current rating is 5A.
It is a thermal circuit breaker.
It is a single-pole (1 pole) circuit breaker.
The actuator is a toggle type.
It is panel mount.
The distributor part number PB415-ND is a cross-reference.
