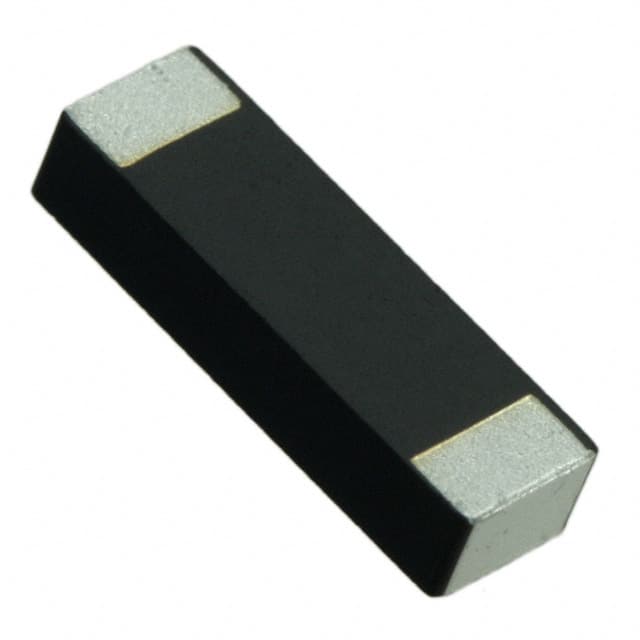

The Pulse Electronics W3070 is a ceramic chip antenna engineered for dual-band wireless communication, supporting EGSM900 and PCN1800 radio systems. This compact antenna measures just 10 x 3.2 x 2 mm, making it suitable for space-constrained designs. It features a low profile and low weight, with lead-free materials and SMD compatibility for easy integration into automated manufacturing processes.
The W3070 antenna operates across two frequency ranges: 880-960 MHz for EGSM900 and 1710-1880 MHz for PCN1800. It achieves a typical maximum gain of 1.5 dBi in the lower band and 1 dBi in the upper band. The return loss is specified at a minimum of -4.7 dB for EGSM900 and -4 dB for PCN1800. The antenna has an impedance of 50 Ohms and an operating temperature range of -40 to +85 °C.
Designed for surface mounting, the W3070 is fully compatible with lead-free soldering processes and is supplied in tape and reel packaging. Its applications include GSM radios and other devices requiring dual-band cellular connectivity. The antenna's construction utilizes lead-free materials, aligning with environmental compliance standards.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The W3070 antenna operates in two ranges: 880-960 MHz for EGSM900 and 1710-1880 MHz for PCN1800.
The maximum gain is 1.5 dBi for EGSM900 and 1 dBi for PCN1800.
The impedance of the W3070 antenna is 50 Ohms.
The operating temperature range is -40 to +85 °C.
The dimensions are 10 mm x 3.2 mm x 2 mm (W x L x H).
The W3070 antenna is designed for surface mount.
The W3070 antenna is RoHS3 Compliant.
