| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
9,610 pcs
|
9610 pcs | On Request | 1 | On Request | On Request | 13+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Antenna Type | |
| Applications | |
| Efficiency | |
| Frequency (Center | |
| Frequency Group | |
| Frequency Range | |
| Gain | |
| Height (Max) | |
| Mounting Type | |
| Number of Bands | |
| Operating Temperature | |
| RF Family | |
| Return Loss | |
| Storage Temperature | |
| Termination | |
| Termination Style | |
| VSWR | |
| Weight |

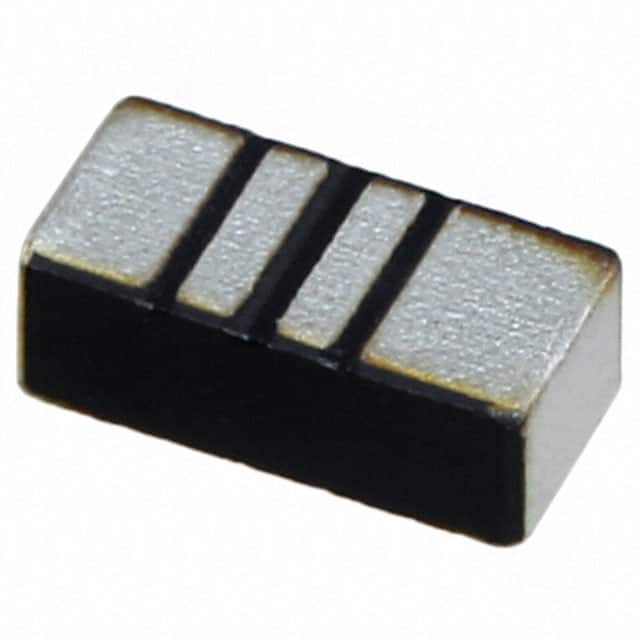

The Pulse Electronics W3008G is a compact ceramic chip antenna specifically designed for 2.4GHz wireless applications. Its small form factor, measuring 3.2 x 1.6 x 1.1mm, makes it suitable for space-constrained designs.
This antenna operates in the 2400-2483.5MHz frequency range, making it ideal for devices utilizing the 2.4GHz ISM band, including Bluetooth, BLE, and WiFi 2.4GHz radios. It boasts an efficiency of greater than 80% and a gain exceeding 1.5dBi, ensuring reliable wireless communication.
The W3008G features a surface mount (SMD) compatible design with a solder termination, facilitating easy integration into printed circuit boards. Its mechanical specifications include a weight of 0.03g and dimensions of 3.2mm length, 1.6mm width, and 1.1mm thickness. The antenna is rated for a power withstanding of 2W and operates within a temperature range of -40°C to +85°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating temperature range is -40 to +85 °C.
The MSL rating is 1.
Yes, the W3008G antenna is RoHS3 Compliant.
The frequency range is 2400-2483.5 MHz.
The gain is greater than 1.5 dBi.
The dimensions are 3.2 x 1.6 x 1.1mm.
