| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
952 pcs
|
952 pcs | On Request | 1 | On Request | On Request | 1208+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Dimming | |
| Internal Switch(s) | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power Dissipation | |
| Storage Temperature | |
| Supplier Device Package | |
| Supplier Package | |
| Type | |
| Voltage |

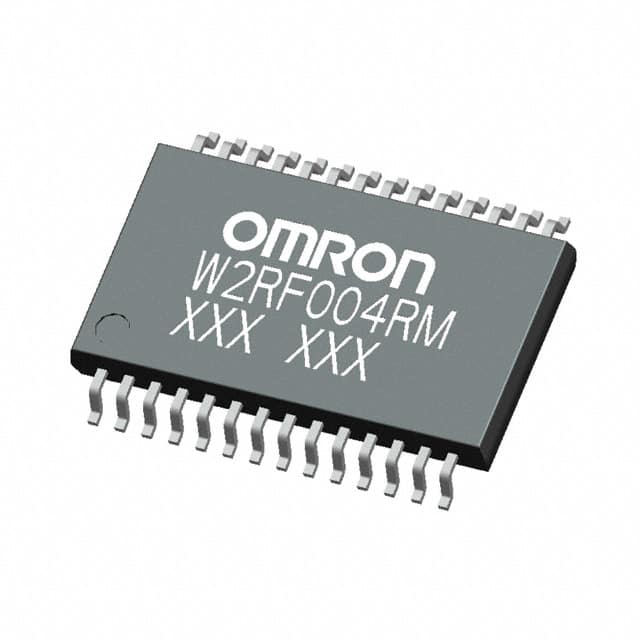

The Omron W2RF004RM is a linear LED driver integrated circuit designed for controlling LED effects within various applications. It features free-running PWM gradation control with up to 1,024 levels, enabling smooth fade-in and fade-out effects while reducing CPU load.
This IC provides independent control for up to 9 lines and supports device group settings. Up to 49 pieces can be connected on the same serial bus communication line. It operates with a supply voltage range of 3.0V to 5.5V and can deliver up to 50mA per output pin.
The W2RF004RM is housed in a 28-SOP package and is designed for surface mount applications. It operates within a temperature range of -20°C to 85°C. The device is RoHS3 compliant.
This LED control IC is suitable for applications requiring precise LED dimming and effect control, such as lighting systems, displays, and indicator panels.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.17 | $0.17 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The supply voltage range is 3.0V to 5.5V.
It has 9 driving outputs.
The maximum output current per pin is 50mA when VDD is 5.0V, and 30mA when VDD is 3.3V.
It supports PWM dimming.
The operating temperature range is -20°C to 85°C.
It is available in a 28-LSSOP surface-mount package.
