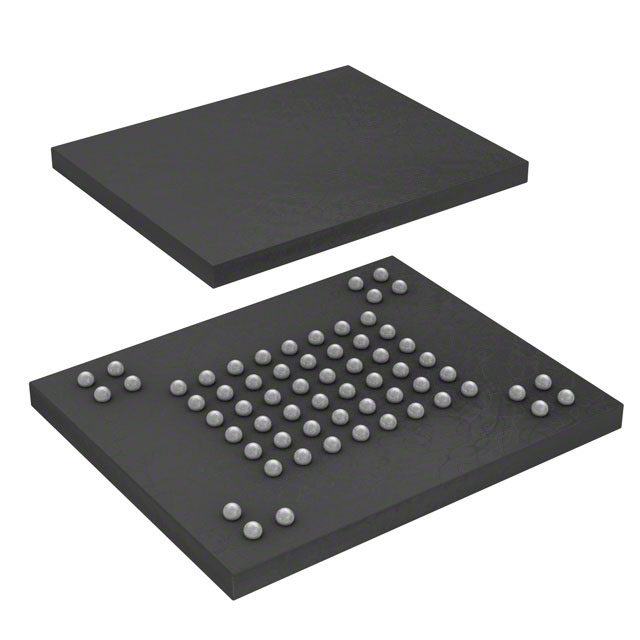

W29N01HVBINA The Winbond Electronics W29N01HVBINA is a 1Gbit parallel NAND Flash memory IC. It operates with a supply voltage range of 2.7V to 3.6V and features a 25ns access time.
Mfr Part #:

W29N01HVBINA

Available from 2 distributors
Mfr Name: Winbond Electronics
Winbond Electronics
The Winbond Electronics W29N01HVBINA is a 1Gbit parallel NAND Flash memory IC. It operates with a supply voltage range of 2.7V to 3.6V and features a 25ns access time.
✓ Total Stock: 1,012 pcs
$ Price Range: $1.28

W29N01HVBINA Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Xingangxin ✓
Non-Authorised Inventory information
1,012 pcs
On Request
1012 pcs On Request 1 On Request On Request On Request On Request On Request
Mufeng Electronics ✓
Non-Authorised Inventory information
On Request
On Request
On Request On Request 1 On Request On Request / On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

W29N01HVBINA Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Access Time
Memory Format
Memory Interface
Memory Organization
Memory Size
Memory Type
Mounting Type
Operating Temperature
Package / Case
Supplier Device Package
Technology
Voltage
Write Cycle Time
View Similar Products (0)

W29N01HVBINA Description

Short technical summary and product information.

The Winbond Electronics W29N01HVBINA is a 1Gbit NAND Flash memory integrated circuit designed for parallel interface applications. This non-volatile memory offers a memory organization of 128M x 8 and operates within a voltage supply range of 2.7V to 3.6V.



Key electrical characteristics include an access time of 25 ns and a write cycle time of 25ns. The device is specified for operation across a temperature range of -40°C to 85°C (TA). It is housed in a 63-VFBGA package, suitable for surface mount applications.



This memory IC is part of the W29N01HV series and utilizes FLASH - NAND (SLC) technology. Its robust design and specifications make it suitable for various embedded systems and data storage applications requiring reliable non-volatile memory.

W29N01HVBINA Quick Information

Product Type: NAND Flash Memory
Canonical Name: Winbond Electronics W29N01HVBINA 1Gbit Parallel NAND Flash Memory
Subcategory: NAND

W29N01HVBINA Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

W29N01HVBINA Estimated Pricing

Qty Low High
1+ $1.28 $1.28

Estimated market price range - modelled values for guidance only, not live distributor offers.

W29N01HVBINA Features

  • 1Gbit parallel NAND Flash memory IC.
  • Operates from 2.7V to 3.6V supply voltage.
  • Features 25ns access and write cycle times.
  • Packaged in a 63-VFBGA for surface mounting.
  • Wide operating temperature range of -40°C to 85°C.

W29N01HVBINA Applications

  • Suitable for embedded data storage.
  • Ideal for parallel interface systems.
  • Used in applications requiring non-volatile memory.
  • Designed for reliable performance in harsh environments.

W29N01HVBINA FAQs

6 frequently asked questions generated from this part’s specifications.
What is the memory size of the W29N01HVBINA?

The W29N01HVBINA has a memory size of 1 Gbit (128M x 8).

What is the operating voltage range?

The operating voltage range is 2.7V to 3.6V.

What is the operating temperature range?

The operating temperature range is -40°C to +85°C (TA).

What package is the W29N01HVBINA available in?

The W29N01HVBINA is available in a 63-VFBGA (9x11) surface-mount package.

What is the access time of this memory?

The access time is 25 ns.

What type of memory technology does it use?

It uses SLC (Single-Level Cell) NAND Flash technology.
