| Category | |
| Manufacturer Name | |
| Current | |
| Efficiency | |
| Height | |
| Lead Style | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| Power (Watts) | |
| Temperature Coefficient | |
| Type | |
| Voltage | |
| Width |

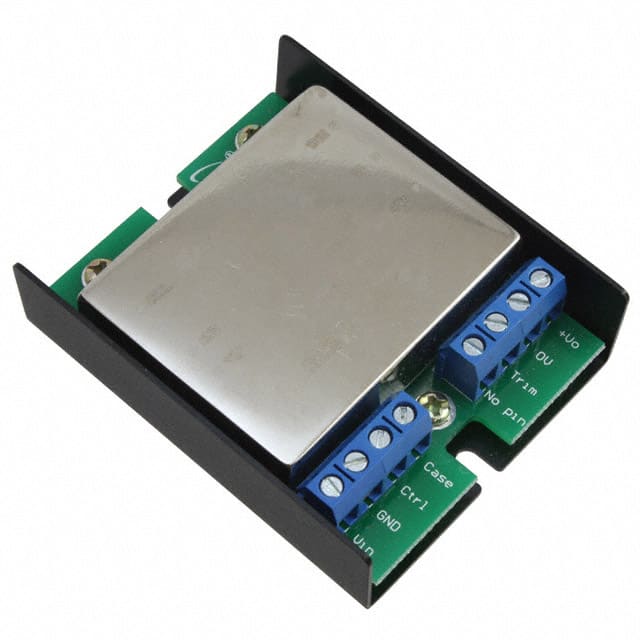

The CUI Inc. VYC30W-Q24-S5-T is a 30W DC-DC converter from the VYC30W-T series, designed for enclosed applications with chassis mounting.
This converter features a 5V single output and accepts a wide input voltage range of 9-36Vdc. It delivers up to 6A of current and boasts an efficiency of up to 87%. Key electrical specifications include ±0.5% line regulation and ±1% load regulation, with a voltage accuracy of ±3%. Protection features include short circuit, over current, and over voltage protection.
The operating temperature range for this unit is -40°C to 85°C, making it suitable for various environmental conditions. Its dimensions are 67.5mm x 55.0mm x 19.1mm, and it offers 1,500 Vdc isolation.
This converter is suitable for applications requiring a reliable and compact power solution with a chassis mount form factor.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 9 to 36 Vdc.
The output voltage is 5 Vdc and the output current is 6 A.
The maximum output power is 30W.
The operating temperature range is -40°C to 85°C.
It is a chassis mount type.
