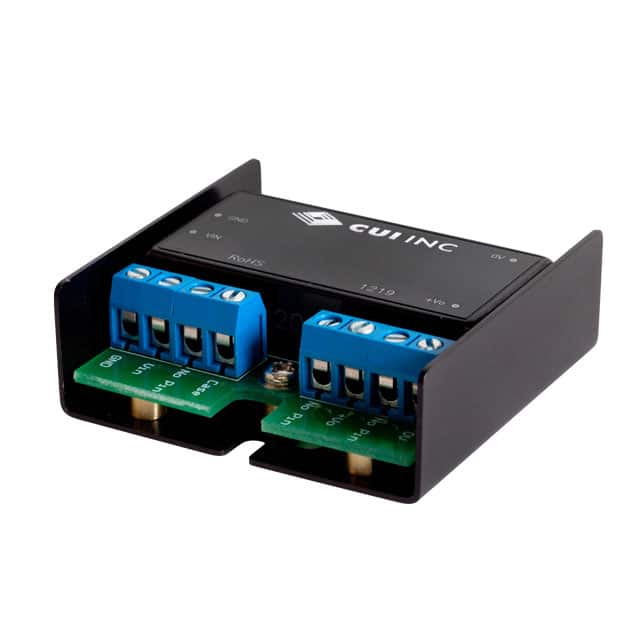

The CUI Inc. VYB10W-Q24-D12-T is a 10W enclosed DC-DC converter designed for chassis mounting. It operates with a wide 4:1 input voltage range of 9-36 Vdc and provides dual outputs of +/-12V at 416mA each. The converter boasts an efficiency of up to 82% and features short circuit protection for enhanced reliability.
With a compact size and screw terminal connectors, this DC-DC converter is suitable for various applications requiring stable power conversion. It operates reliably within an ambient temperature range of -40°C to 85°C, making it a robust choice for demanding environments. The unit offers 1,500 Vdc isolation and a Mean Time Between Failures (MTBF) of 1,000,000 hours.
Key electrical specifications include line regulation of ±0.5% and load regulation of ±1%. The converter also features a switching frequency of 300 kHz and a temperature coefficient of ±0.03%/°C. Its dimensions are 52.3mm x 55.0mm x 19.0mm, facilitating integration into various systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 9-36 Vdc.
It provides dual outputs of +/-12V at 416mA each.
The power rating is 10W.
The typical efficiency is 82%.
The operating temperature range is -40°C to 85°C.
Yes, it features continuous, automatic recovery short circuit protection.
It uses chassis mount with screw terminal connectors.
