Mfr Part #:

VXRF2-28

Mfr Name: VPT

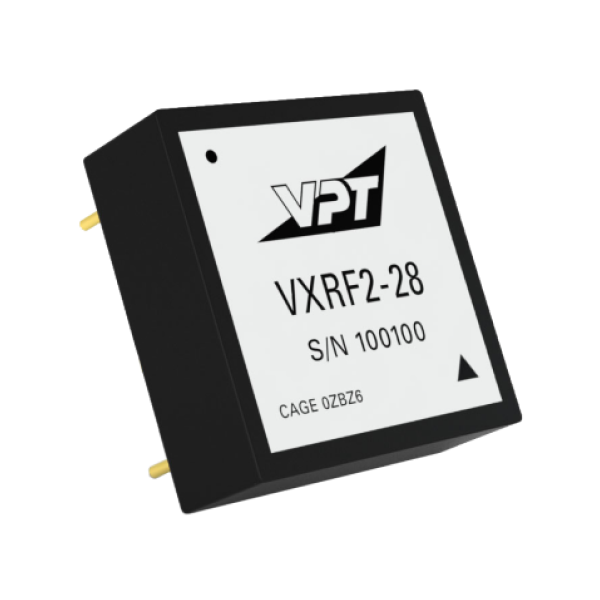

The VPT VXRF2-28 is a high-reliability COTS EMI filter designed for harsh environments. It offers up to 2A maximum current and a wide input voltage range.

✓ Total Stock: 51 pcs

$ Price Range: $0.99

VXRF2-28 Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
ADI/AAR OEM Supply ✓ Non-Authorised Inventory information	51 pcs On Request	51 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

VXRF2-28 Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	New Products
Manufacturer Name	VPT
Attenuation	55 dB at 500kHz
Dimensions	1.100" x 1.100" x 0.350"
Input Voltage	60 V
Output Power	50 W
Storage Temperature	-55 °C to +125 °C
Weight	23 g

View Similar Products (0)

VXRF2-28 Description

Short technical summary and product information.

The VPT VXRF2-28 is a high-reliability COTS EMI filter from VPT, Inc. It is designed for demanding applications in military ground vehicles, commercial, and military aircraft.

Key electrical specifications include a maximum current of 2 A, a maximum output power of 50 W, and a wide input voltage range from 0 V to 60 V. It can handle input voltage transients of 80V for 1 second and 100V for 200 milliseconds. The filter provides a minimum attenuation of 55 dB at 500 kHz and offers 2000 V isolation.

Designed for harsh environments, the VXRF2-28 features a rugged, epoxy-encapsulated V-SHIELD™ package that is resistant to chemical, solvent, and salt environments. It is fully compatible with high-volume manufacturing processes, including wave soldering and aqueous cleaning. The filter includes an integral six-sided metalized EMI shield and dual-sided conduction cooling for simplified thermal design. Testing is performed to JESD22, MIL-STD-810, and MIL-STD-883 standards.

Compliance includes MIL-STD-1275 A-E, MIL-STD-704 A-F, and MIL-STD-461 C-G when used with an appropriate VXR DC-DC Converter. It also meets RTCA/DO-160 requirements for sections 16, 18, and 21 when paired with a compatible DC-DC converter.

VXRF2-28 Quick Information

Product Type: EMI Filter

Series: VXRF2-28

Canonical Name: VXRF2-28 High Reliability COTS EMI Filter

Subcategory: COTS EMI Filter

VXRF2-28 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

VXRF2-28 Estimated Pricing

Qty	Low	High
1+	$0.99	$0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

VXRF2-28 Features

High reliability COTS EMI filter.
Up to 2 A maximum current.
Wide input voltage range: 0 V to 60 V.
Rugged V-SHIELD epoxy encapsulated package.
Integral six-sided metalized EMI shield.

VXRF2-28 Applications

Suitable for military ground vehicles.
Designed for commercial aircraft.
Used in military aircraft applications.
Optimized for harsh environments.

VXRF2-28 FAQs

6 frequently asked questions generated from this part’s specifications.

What is the maximum current rating for the VXRF2-28 EMI filter?

The VXRF2-28 has a maximum current rating of 2 A.

What is the operating temperature range of the VXRF2-28?

The operating temperature range for the VXRF2-28 is -55 °C to 105 °C.

What is the input voltage range for the VXRF2-28?

The VXRF2-28 has a wide input voltage range of 0 V to 60 V.

What is the minimum attenuation provided by the VXRF2-28 at 500kHz?

The VXRF2-28 provides a minimum attenuation of 55 dB at 500kHz.

What are the dimensions of the VXRF2-28 package?

The dimensions of the VXRF2-28 package are 1.100" x 1.100" x 0.350".

Does the VXRF2-28 meet MIL-STD-461 requirements?

Yes, the VXRF2-28 meets MIL-STD-461 C-G when used with an appropriate VXR DC-DC Converter.
