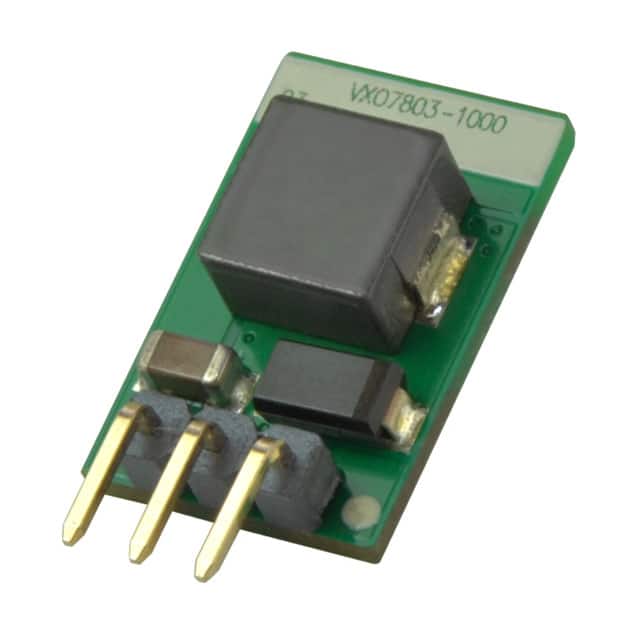

VXO7805-1000 The VXO7805-1000 from CUI Inc. is a non-isolated DC switching regulator that provides a regulated 5V or -5V output. It delivers up to 1000mA (positive) or -500mA (negative) with high efficiency up to 93%.
Mfr Part #:

VXO7805-1000

Available from 1 distributors
Mfr Name: CUI Inc.
CUI Inc.
The VXO7805-1000 from CUI Inc. is a non-isolated DC switching regulator that provides a regulated 5V or -5V output. It delivers up to 1000mA (positive) or -500mA (negative) with high efficiency up to 93%.
✓ Total Stock: 85 pcs

VXO7805-1000 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
ADI/AAR OEM Supply ✓
Non-Authorised Inventory information
85 pcs
On Request
85 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

VXO7805-1000 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Approval Agency
Current
Efficiency
Features
Height
Length
Mounting Type
Number of Outputs
Operating Temperature
Power (Watts)
Standard Number
Storage Temperature
Tape & Reel
Temperature Coefficient
Type
Voltage
Width
View Similar Products (0)

VXO7805-1000 Description

Short technical summary and product information.

The VXO7805-1000 is a non-isolated DC switching regulator from CUI Inc. designed for 5V or -5V output applications. With a wide input voltage range (8 to 36 V for positive output, 8 to 27 V for negative output) and high efficiency typically reaching 93% for the positive output, it serves as an efficient alternative to linear regulators.



Key electrical specifications include 1000 mA maximum output current for the positive output and 500 mA maximum for the negative output, with ripple and noise limited to 75 mVp-p maximum. The module features line regulation of ±0.2% typical and load regulation of ±0.4% typical, ensuring stable output under varying conditions.



Protection features include continuous short circuit protection with automatic recovery. The device operates over a -40°C to +85°C temperature range with derating. It is packaged in a 3-SIP through-hole module measuring 11.5 x 7.5 x 17.5 mm.



Compliance includes RoHS3 (low confidence), REACH unaffected (low confidence), and safety approvals UL 60950-1 certified with design meeting 62368-1. The module is pin-out compatible with standard linear regulators, facilitating drop-in upgrades for efficiency improvement.

VXO7805-1000 Quick Information

Product Type: Non-Isolated DC Switching Regulator
Series: VXO78-1000
Canonical Name: CUI Inc. VXO7805-1000 Non-Isolated DC Switching Regulator
Subcategory: Non-Isolated

VXO7805-1000 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

VXO7805-1000 Features

  • High efficiency up to 93% typical.
  • Supports both positive and negative outputs.
  • Wide -40°C to +85°C operating temperature.
  • Short circuit protection with auto recovery.
  • Pin-out compatible with linear regulators.

VXO7805-1000 Applications

  • Ideal for commercial ITE equipment.
  • Can replace linear regulators for higher efficiency.
  • Suitable for wide input voltage applications.
  • Used in distributed power architectures.

VXO7805-1000 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating temperature range?

-40°C to +85°C with derating.

What is the package type and mounting?

3-SIP Module, Through Hole mounting.

Is this device RoHS compliant?

The device is listed as RoHS3 Compliant, but this status is unverified (low confidence).

What is the input voltage range for positive output?

8 to 36 Vdc.

What is the typical efficiency for positive output?

93% at minimum input voltage, full load.

Does it have short circuit protection?

Yes, continuous short circuit protection with automatic recovery.

What are the ripple and noise specifications?

75 mVp-p maximum for both positive and negative outputs (nominal input, 20-100% load, 20 MHz bandwidth).
