| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
185 pcs
|
185 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Average Forward Current (IdAV) | |
| Clearance Distance | |
| Creepage Distance | |
| Current | |
| Diode Type | |
| Forward Voltage (Vf) | |
| I2t Rating (Nominal @ TVJ=45 °C, t=10 ms (50 Hz), VR=0) | |
| I2t Rating (Nominal @ TVJ=45 °C, t=8.3 ms (60 Hz), VR=0) | |
| Isolation Voltage (Nominal @ 1 mA, t=1 s) | |
| Isolation Voltage (Nominal @ 50/60 Hz, RMS, t=1 min) | |
| Max Allowable Acceleration | |
| Mounting Torque | |
| Mounting Type | |
| Non Repetitive Surge Current (Nominal @ TVJ=45 °C, t=10 ms (50 Hz), VR=0) | |
| Non Repetitive Surge Current (Nominal @ TVJ=45 °C, t=8.3 ms (60 Hz), VR=0) | |
| Operating Temperature | |
| Reverse Current (Maximum @ VR=VRRM, TVJ=25 °C) | |
| Reverse Current (Maximum @ VR=VRRM, TVJ=TVJM) | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Termination Style | |
| Thermal Resistance Junction Case (Nominal @ per diode, DC current) | |
| Thermal Resistance Junction Case (Nominal @ per module, DC current) | |
| Thermal Resistance Junction Heatsink (Nominal @ per diode, DC current) | |
| Thermal Resistance Junction Heatsink (Nominal @ per module, DC current) | |
| UL | |
| Voltage | |
| Voltage - Repetitive Peak Reverse (VRRM) | |
| Weight |

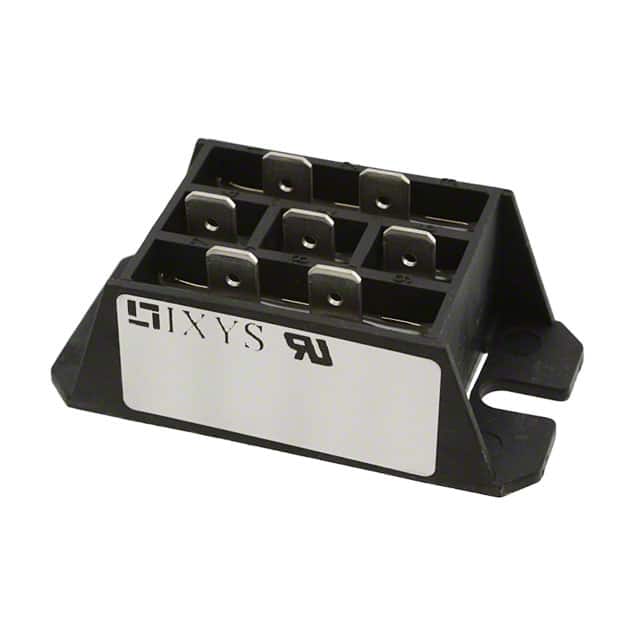

The IXYS VUO50-16NO3 is a three phase bridge rectifier module designed for high voltage rectification applications. It features a repetitive peak reverse voltage (VRRM) of 1600V and an average forward current (IdAV) of 58A at 85°C case temperature. The module can handle non-repetitive surge currents up to 500A (50Hz) and has an I²t rating of 1250 A²s. Forward voltage drop is typically 1.9V at 150A. The device is housed in the FO-F-B package, which includes a DCB ceramic base plate for improved thermal performance. It is chassis mountable with M5 screws and has 1/4" fast-on terminals. Isolation voltage is 3000V RMS for 1 minute. The module weighs approximately 50g and operates over a junction temperature range of -40°C to 125°C. Typical applications include DC power supplies, PWM inverter input rectifiers, and battery DC power supplies.
| Qty | Low | High |
|---|---|---|
| 10+ | $19.51 | $19.51 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
1600 V.
58 A at TC=85°C.
1.9 V at IF=150A, TVJ=25°C.
500 A for 10 ms (50 Hz) and 525 A for 8.3 ms (60 Hz) at TVJ=45°C, VR=0.
FO-F-B chassis mount package with 1/4" fast-on terminals.
-40°C to 125°C (junction temperature).
3000 V~ (50/60 Hz, RMS, t=1 min) and 3600 V~ (1 mA, t=1 s).
