| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| SVHC Present | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

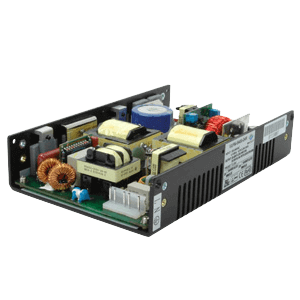

The CUI Inc. VUFM-S400-03R is an open-frame AC DC converter with a power rating of 198W. It provides a single output of 3.3VDC at 60A.
Key electrical specifications include an efficiency of 70% and an isolation voltage of 4kV. The converter operates within a temperature range of 0°C to 70°C with derating. Features include active current/load sharing, low leakage current, output trimming via external resistance, active power factor correction, a power good signal, and remote on/off control.
This chassis mount converter has dimensions of 203.2mm x 127.0mm x 40.6mm (8.00" x 5.00" x 1.60"). It complies with safety standard 60601-1 and holds approvals from CB, CE, cURus, and TUV, making it suitable for medical applications.
This product has been discontinued. Please contact the sales team for further assistance or alternative options.
0°C to 70°C with derating.
3.3 VDC.
60 A.
198 W.
4 kV.
70%.
Chassis Mount.
