| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8,800 pcs
|
8800 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Lead Style | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| SVHC Present | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width |

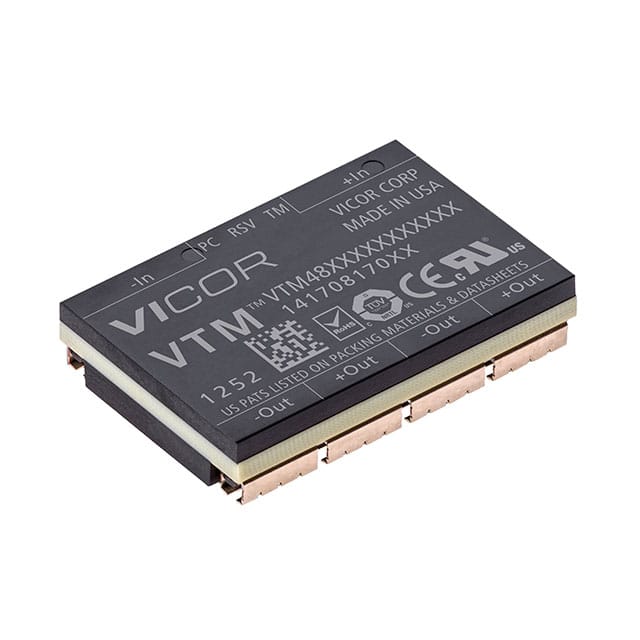

The Vicor VTM48EF120T025A00 is a high-efficiency Voltage Transformation Module (DC DC converter) that operates from a 26V to 55V input bus to deliver a regulated 12V output at up to 25A, providing 300W of power. With a typical efficiency of 96%, it reduces system power consumption and thermal management requirements.
This converter utilizes Vicor's Sine Amplitude Converter (SAC) topology with zero-voltage and zero-current switching, enabling high density (85A/in³) and low noise operation. It includes built-in protection features such as overvoltage lockout, overcurrent, short circuit, and overtemperature protection, as well as remote on/off control and internal temperature monitoring.
The VTM48EF120T025A00 is housed in a surface-mount VI Chip package measuring 32.5mm x 22.0mm x 6.7mm, compatible with standard pick-and-place assembly. Its wide operating temperature range of -40°C to 125°C makes it suitable for demanding environments.
Typical applications include high-end computing systems, automated test equipment, high-density power supplies, and communications systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $87.03 | $87.03 |
| 10+ | $72.57 | $72.57 |
| 100+ | $68.06 | $68.06 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 26V to 55V.
The nominal output voltage is 12V, and the maximum output current is 25A.
The operating temperature range is -40°C to 125°C.
The efficiency is 96%.
It is available in a surface mount module (VI Chip package).
It is listed as RoHS3 Compliant, but this is unverified.
It includes overvoltage lockout, overcurrent, short circuit, and overtemperature protection.
