| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,000 pcs
|
3000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Base Resonator | |
| Current | |
| Frequency | |
| Frequency Stability | |
| Height | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Output | |
| Type | |
| Voltage | |
| Width |

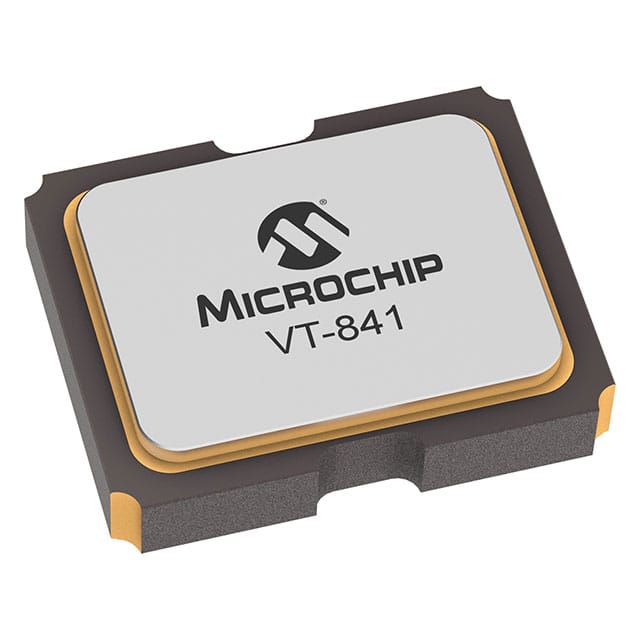

The Microchip Technology VT-841-GFE-1060-40M0000000 is a temperature compensated crystal oscillator (TCXO) designed for applications requiring precise frequency control. It operates at a nominal frequency of 40 MHz with a maximum frequency stability of ±1ppm, ensuring reliable performance across varying environmental conditions.
The oscillator provides a clipped sine wave output and requires a nominal supply voltage of 2.8V, drawing a typical supply current of 2.5mA. It is built on a crystal base resonator and is rated for an operating temperature range of -40°C to 85°C.
The device is housed in a compact 4-SMD no lead package with dimensions of 2.50mm x 2.00mm and a height of 0.90mm, making it suitable for surface mount assembly in space-constrained designs.
| Qty | Low | High |
|---|---|---|
| 10+ | $62.50 | $62.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The nominal frequency is 40 MHz.
The maximum frequency stability is ±1ppm.
It provides a clipped sine wave output.
The nominal supply voltage is 2.8V.
The operating temperature range is -40°C to 85°C.
The package is 4-SMD no lead, measuring 2.50mm x 2.00mm with a height of 0.90mm.
RoHS status is listed as RoHS3 Compliant but is unverified.
