| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Frequency | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| SVHC Present | |
| Standard Number | |
| Storage Temperature | |
| Temperature Coefficient | |
| Type | |
| Voltage | |
| Width |

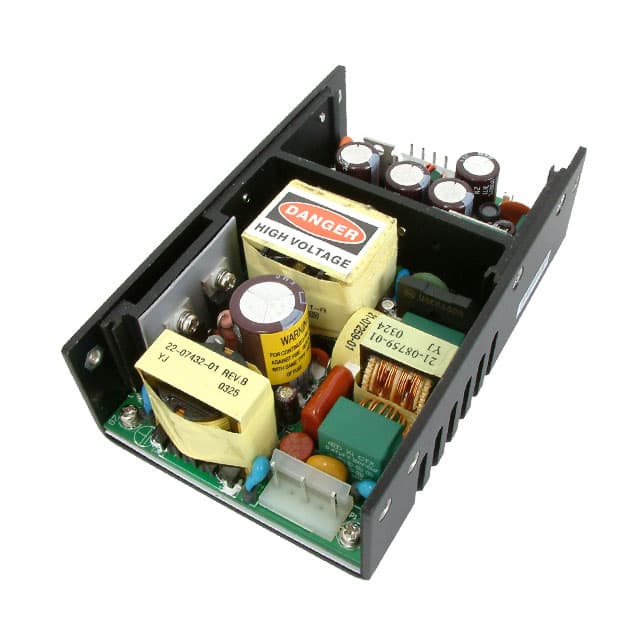

The CUI Inc. VSUU-150-18 is an open-frame AC-DC power supply designed for chassis mounting. It delivers a single output of 18V at up to 8.33A, providing a total power of 150W. The unit operates with a wide input voltage range of 90-264V ac and features 80% typical efficiency.
Key electrical specifications include line regulation of 1% maximum and load regulation of 5% maximum. Protections include over-voltage and over-current protection. The power supply is designed for ITE (Commercial) applications and meets various safety and compliance standards.
With dimensions of 127.0mm x 81.6mm x 41.2mm, the VSUU-150-18 is suitable for integration into various systems. It operates within an ambient temperature range of 0°C to 70°C, with derating applied at higher temperatures.
90-264VAC.
18Vdc at 8.33A maximum.
0°C to 70°C with derating.
Chassis mount open frame.
Over voltage protection at 132% and over current protection at 150%.
80% typical.
100,000 hours.
