| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Frequency | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Power | |
| Power (Watts) | |
| Standard Number | |
| Storage Temperature | |
| Temperature Coefficient | |
| Type | |
| Voltage | |
| Width |

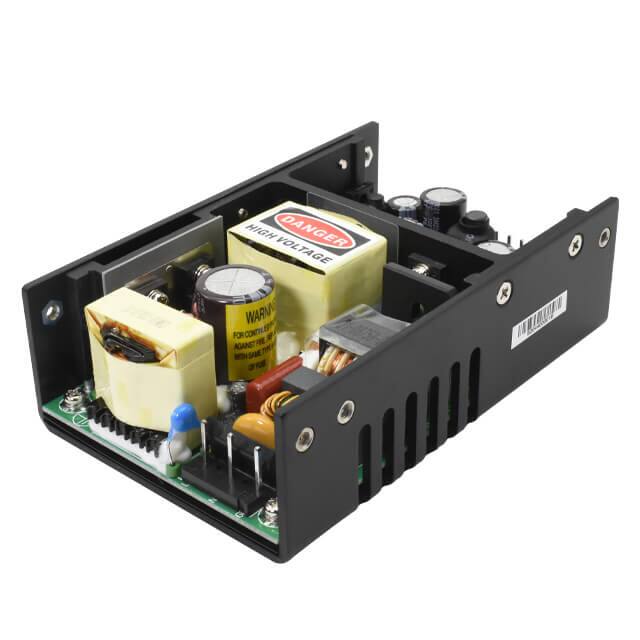

The CUI Inc. VSUU-120C-T512A is a versatile AC-DC power supply designed for various applications. It provides a continuous output power of up to 120W and features a universal input voltage range from 90 to 264 Vac, ensuring compatibility across different regions.
This power supply offers multiple output voltages, including 5.0 Vdc, 12.0 Vdc, and -12.0 Vdc, with corresponding maximum currents of 1.5A, 0.8A, and 0.0A respectively. It boasts an efficiency of up to 80% and includes active power factor correction.
Designed for reliability, the VSUU-120C-T512A includes over-voltage, over-current, and short-circuit protections. It is certified to IEC/EN/UL 62368 standards, making it suitable for ITE (Commercial) applications. The unit is chassis mountable and has an open frame construction.
Environmental specifications include an operating temperature range of 0°C to 70°C and an operating humidity range of 0% to 95% non-condensing. It also meets RoHS3 compliance.
The input voltage range is 90 to 264 Vac at 47 to 63 Hz.
The converter provides three outputs: 5 Vdc at 1.5 A, +12 Vdc at 0.8 A, and -12 Vdc at 0.0 A.
The maximum output power is 120 W.
The converter includes over voltage protection (112-132%), over current protection (110-150% with auto recovery), and short circuit protection (auto recovery).
The operating temperature range is 0°C to 70°C with derating.
The converter is an open frame package with chassis mount. Dimensions are 127.0 mm x 81.5 mm x 39.1 mm.
The converter has CE and cURus safety approvals and complies with EMI/EMC standards CISPR-32/EN 55032 Class B, EN 61000-3-2, and EN 61000-3-3.
