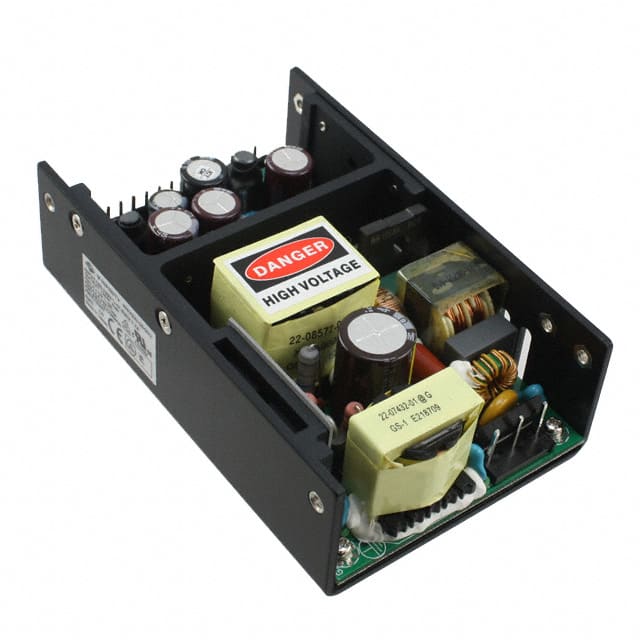

The CUI Inc. VSUU-120-D515 is an AC-DC power supply designed for various applications, delivering up to 120W of continuous power. It features a dual output configuration with nominal voltages of 5Vdc and 15Vdc, capable of supplying up to 6A of current.
This power supply operates with a universal input voltage range of 90-260 Vac and includes active power factor correction (PFC) for improved efficiency, rated at 80% typical. It is designed with an internal EMI filter and offers protections against over-voltage, over-current, and over-load conditions.
The VSUU-120-D515 adheres to an industry-standard 3" x 5" footprint, making it suitable for chassis mounting. Its dimensions are 127.0mm x 76.2mm x 32.5mm. The unit is certified by multiple agencies including UL, TUV, and EN, meeting standards such as UL 60950-1 and EN 60950-1.
90-260 Vac.
The converter provides dual outputs of 5 Vdc and 15 Vdc with a total power of 120 W.
0°C to 70°C with derating.
Open frame chassis mount.
UL 60950-1, EN 60950-1, and CB Scheme.
Yes, it has active PFC with a typical power factor of 0.97.
Overvoltage protection (112-132%) and overcurrent protection (110-150%).
