| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

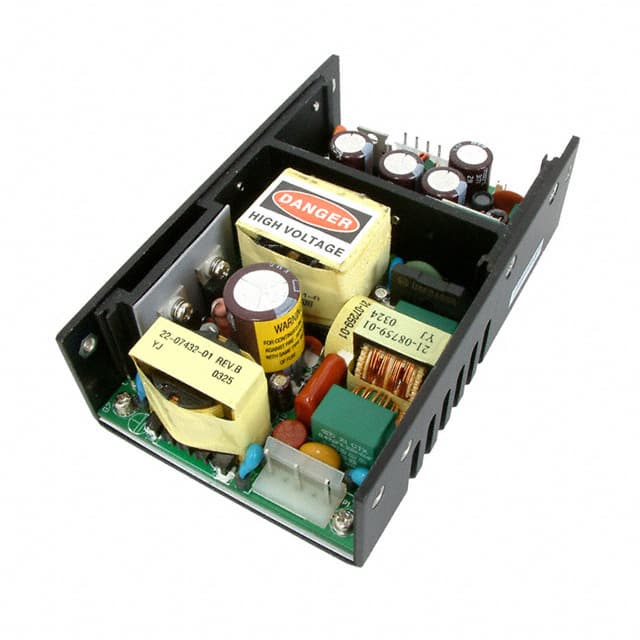

The VSUU-120-48 from CUI Inc. is an open frame AC/DC converter designed for chassis mounting. This unit delivers a power output of 120W with a 3A current rating and a 48V output voltage.
Key electrical specifications include an efficiency of 80% and universal input capability. It features adjustable output, DC input capability, and Power Factor Correction (PFC). The operating temperature range is from 0°C to 70°C, with derating applied.
This converter is suitable for ITE (Commercial) applications and meets various safety and EMC standards, including CB Scheme, EN, IEC, SIQ, TUV, and UL. It is compliant with standards such as 55024, 55032 Class B, 60950-1, 61000-3-2, and 61000-3-3.
Mechanical dimensions are 127.0mm in length, 81.4mm in width, and 39.1mm in height. The VSUU-120-48 is RoHS3 compliant and has an MSL rating of 1.
48V
0°C to 70°C with derating
Open frame chassis mount
CB Scheme, EN, IEC, SIQ, TUV, and UL
80%
127mm x 81.4mm x 39.1mm
