VSP5610RSHR The Texas Instruments VSP5610RSHR is a 16-bit, 4-channel imaging analog front-end with a sample rate of 35MSPS. It features a surface mount package and operates within a temperature range of 0°C to 85°C.
Mfr Part #:

VSP5610RSHR

Available from 3 distributors
Mfr Name: Texas Instruments
Texas Instruments
The Texas Instruments VSP5610RSHR is a 16-bit, 4-channel imaging analog front-end with a sample rate of 35MSPS. It features a surface mount package and operates within a temperature range of 0°C to 85°C.
✓ Total Stock: 22,164 pcs
$ Price Range: $7.33

VSP5610RSHR Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Romaks Technologies ✓
Non-Authorised Inventory information
20,000 pcs
On Request
20000 pcs On Request 1 On Request On Request On Request On Request On Request
Smaxon Electronics ✓
Non-Authorised Inventory information
2,160 pcs
On Request
2160 pcs On Request 1 On Request On Request 13+ On Request On Request
Optech Co.,Limited ✓
Non-Authorised Inventory information
4 pcs
On Request
4 pcs On Request 1 On Request On Request 13+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

VSP5610RSHR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
GPIO
Industrial Grade
Interface
Lead Spacing
Medical Grade
Military Grade
Mounting Type
Number of Bits
Number of Channels
Operating Temperature
Output
Power (Watts)
Power Dissipation
Supplier Device Package
Supplier Package
Voltage
View Similar Products (0)

VSP5610RSHR Description

Short technical summary and product information.

The VSP5610RSHR from Texas Instruments is a high-performance 16-bit, 4-channel imaging analog front-end (AFE) designed for CCD and CMOS sensors. It offers a maximum sample rate of 35 MSPS, making it suitable for applications requiring fast data acquisition.



Key electrical specifications include a gain range from -6 dB to 17 dB and a typical power dissipation of 339 mW. The device supports a wide operating temperature range of 0°C to 85°C. It provides flexible output data formats, including CMOS Parallel and LVDS, and features selectable analog and digital gain control. The AFE includes an 8-bit offset correction DAC and a selectable input clamp/reference level.

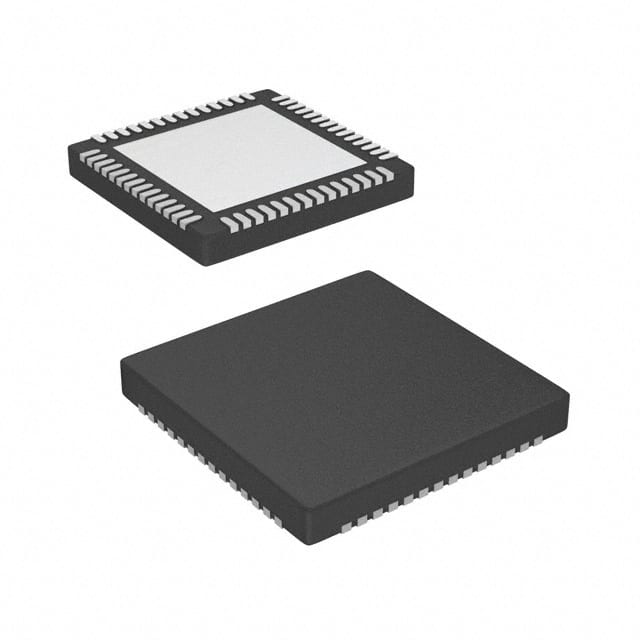

Packaged in a 56-VQFN (7x7) with an exposed pad, the VSP5610RSHR is designed for surface mounting. It operates from a 3.3V power supply and includes a built-in LDO. The device also incorporates a timing generator with adjustable resolution and supports SPI communication for control.



Applications for the VSP5610RSHR include copiers, facsimile machines, and scanners where high-quality image signal processing is essential.

VSP5610RSHR Quick Information

Product Type: Analog Front End (AFE)
Canonical Name: VSP5610RSHR 16-Bit, 4-Channel Imaging Analog Front-End with Timing Generator
Subcategory: Data Acquisition

VSP5610RSHR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

VSP5610RSHR Estimated Pricing

Qty Low High
1+ $7.33 $7.33

Estimated market price range - modelled values for guidance only, not live distributor offers.

VSP5610RSHR Features

  • 16-bit resolution for detailed imaging.
  • Four channels for multi-sensor input.
  • 35 MSPS maximum sample rate.
  • Wide gain adjustment range.
  • Surface mount 56-VQFN package.

VSP5610RSHR Applications

  • Ideal for copiers and scanners.
  • Suitable for facsimile machines.
  • Used in imaging applications.
  • Supports CCD and CMOS sensors.

VSP5610RSHR FAQs

7 frequently asked questions generated from this part’s specifications.
What is the resolution of the VSP5610RSHR?

The VSP5610RSHR has a resolution of 16-Bit.

How many channels does the VSP5610RSHR support?

The VSP5610RSHR supports 4 channels.

What is the maximum sample rate of the VSP5610RSHR?

The maximum sample rate is 35 MSPS.

What is the operating temperature range for the VSP5610RSHR?

The operating temperature range is 0°C to 85°C.

What type of package is the VSP5610RSHR in?

The VSP5610RSHR is available in a 56-VQFN (7x7) package.

What are the output data formats supported by the VSP5610RSHR?

The VSP5610RSHR supports CMOS Parallel and LVDS output data formats.

What is the typical power dissipation of the VSP5610RSHR?

The typical power dissipation is 339 mW.
