| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,635 pcs
|
1635 pcs | On Request | 1 | On Request | On Request | 21+ | On Request | On Request | |
|
1,200 pcs
|
1200 pcs | On Request | 1 | On Request | On Request | 2119+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Lead Spacing | |
| Mounting Type | |
| Number of Bits | |
| Number of Channels | |
| Power (Watts) | |
| Storage Temperature | |
| Supplier Device Package | |
| Supplier Package | |
| Tape & Reel | |
| Voltage |

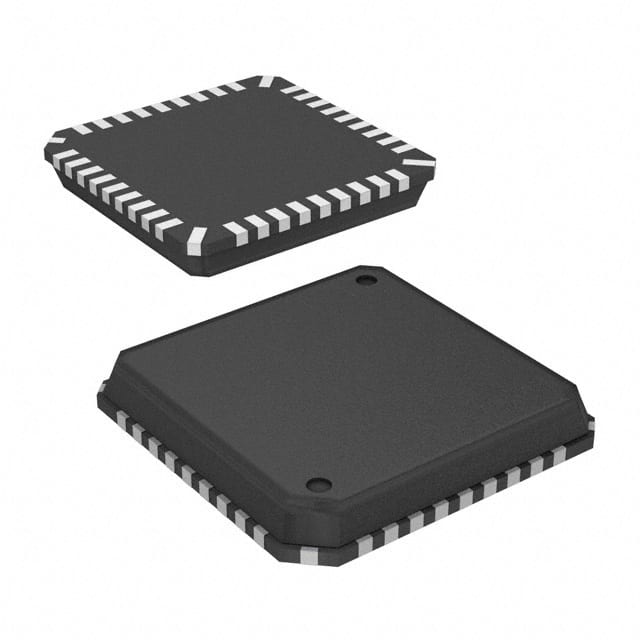

The VSP2582RHNR from Texas Instruments is a complete mixed-signal processing IC for digital cameras. It provides correlated double sampling (CDS) and analog-to-digital conversion (ADC) for charge-coupled device (CCD) array outputs.
Key features include a 36-MHz CDS and a 36-MHz conversion rate with 12-bit resolution. The device offers a high input-referred SNR of 78 dB and programmable gain control ranging from -9 dB to +35 dB. It also includes programmable black level clamping and offset correction for stable gain control under varying illumination conditions.
Designed for portable applications, the VSP2582RHNR operates from a low voltage of 2.7 V to 3.6 V and consumes low power, with 85 mW at 3.0 V and 36 MHz, and only 1 mW in standby mode. The IC is available in a QFN-36 package with an exposed thermal pad for improved thermal performance.
This AFE IC is suitable for applications requiring precise signal processing from CCD sensors, such as digital cameras and imaging systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $9.84 | $9.84 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The VSP2582RHNR operates within a voltage range of 2.7V to 3.6V.
The VSP2582RHNR is available in a 36-VFQFN package.
The Correlated Double Sampling (CDS) rate is 36-MHz.
The Analog-to-Digital Conversion (ADC) rate is 36-MHz.
The input-referred SNR is 78-dB at CDS Gain 0 dB.
The typical operating power consumption is 85 mW at 3.0 V and 36 MHz.
