| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
29 pcs
|
29 pcs | On Request | 1 | On Request | On Request | 1913 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Circuit Type | |
| Height | |
| Lead Spacing | |
| Length | |
| Mounting Type | |
| Number of Pins | |
| Number of Resistors | |
| Operating Temperature | |
| Power Per Element | |
| Resistance | |
| Resistance (Ohms) | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Temperature Coefficient | |
| Tolerance | |
| Width |

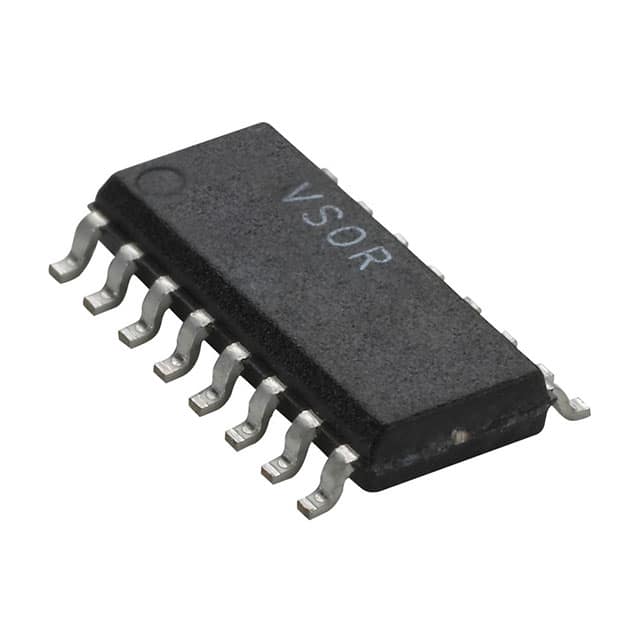

The Vishay Dale VSOR1601472JTF is a thin film resistor network designed for use in analog or digital circuits. It is packaged in a 16-SOIC (0.154", 3.90mm Width) surface mount package.
This network offers a resistance value of 4.7k Ohms with a tolerance of ±5% and a temperature coefficient of ±100ppm/°C. It has 15 individual resistors, each rated for 100mW of power. The operating temperature range is -55°C to 125°C.
The VSOR series resistor networks are built with thin film tantalum nitride on silicon, providing low noise and high stability. The molded plastic package offers environmental protection and is compatible with automatic surface mounting equipment. This specific part is a bussed circuit type.
Key specifications include a height of 1.76mm, length of 9.91mm, and width of 3.86mm. The part is identified by Vishay Dale part number VSOR1601472JTF and is also known by various DK part numbers including 764-VSOR1601472JTFTR-ND.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 4.7k Ohms.
The tolerance is ±5%.
The temperature coefficient is ±100ppm/°C.
There are 15 resistors in this network.
The operating temperature range is -55°C to 125°C.
The circuit type is Bussed.
The package dimensions are 9.91mm L x 3.86mm W x 1.76mm H.
