| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
14 pcs
|
14 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Dimensions | |
| Forward Current | |
| Forward Voltage | |
| Junction Temperature | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Operating Temperature | |
| Orientation | |
| Peak Forward Current | |
| Power Dissipation | |
| Radiant Intensity (Ie) Min @ If | |
| Storage Temperature | |
| Tape & Reel | |
| Type | |
| Viewing Angle | |
| Voltage | |
| Wavelength |

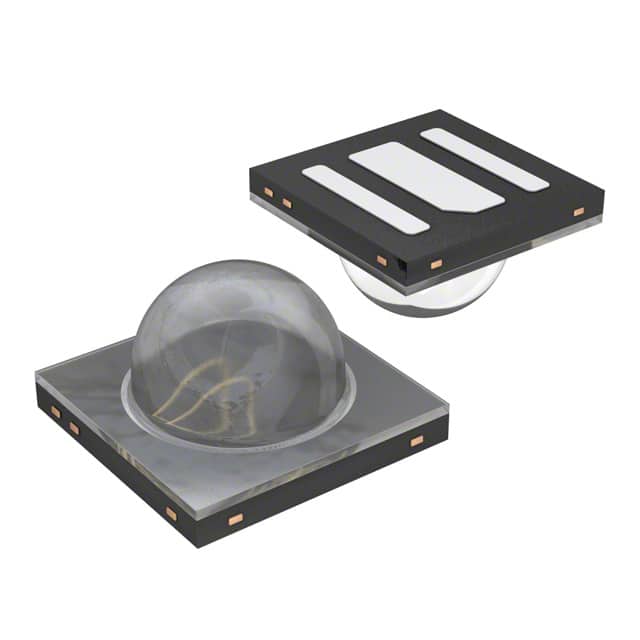

The Vishay VSMY98545 is an infrared (IR) LED emitter operating at a peak wavelength of 850 nm. It utilizes surface emitter technology and is molded in a low thermal resistance SMD package with a lens, offering high radiant power and high speed.
This component is designed for high drive currents, supporting up to 1.5 A DC and 5 A pulses. It has a low forward voltage and a low thermal resistance of 10 K/W. The viewing angle is 90 degrees, with an angle of half intensity of ± 45 degrees.
The VSMY98545 is suitable for applications such as infrared illumination for CMOS cameras (CCTV), illumination for 3D gaming cameras, machine vision, and bio-identification. It operates within a temperature range of -40°C to +85°C.
The LED emitter is housed in a 3-SMD, No Lead package with dimensions of 3.85 x 3.85 x 2.24 mm and is available on tape and reel. It meets MSL 3 requirements and is lead-free, supporting reflow soldering.
The peak wavelength is 850 nm.
The forward current is 1.5 A.
The forward voltage is 1.8 V.
The radiant intensity is 230 mW/sr @ 1A.
The viewing angle is 90 degrees.
The operating temperature range is -40°C to +85°C.
The package type is 3-SMD, No Lead, a high power SMD with lens.
