| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
30,000 pcs
|
30000 pcs | On Request | 1 | On Request | On Request | 1853+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Forward Current | |
| Forward Voltage | |
| Mounting Type | |
| Operating Temperature | |
| Orientation | |
| Radiant Intensity (Ie) Min @ If | |
| Storage Temperature | |
| Tape & Reel | |
| Type | |
| Viewing Angle | |
| Voltage | |
| Wavelength |

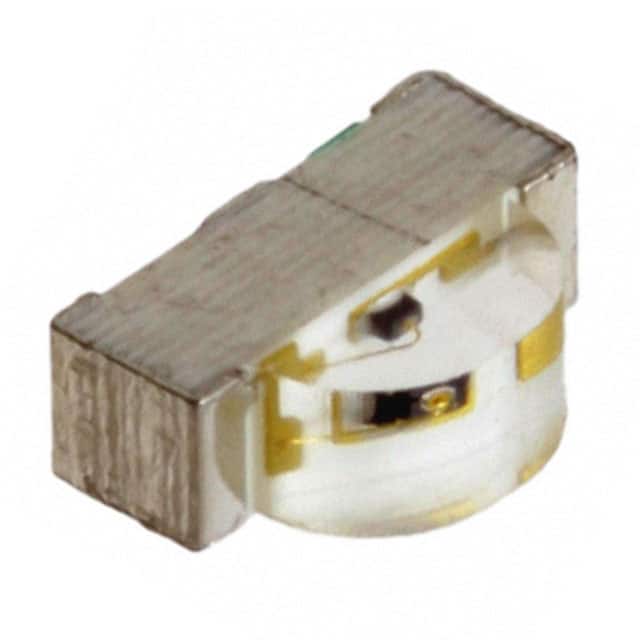

The Vishay Dale VSMG10850 is an infrared (IR) emitter designed for various applications requiring light in the 850nm wavelength range. This component operates with a typical forward voltage of 1.4V and a maximum forward current of 65mA. Its radiant intensity is a minimum of 1mW/sr at 20mA, and it offers a wide viewing angle of 150°.
The emitter is housed in a 2-SMD, No Lead package, suitable for surface mounting with a right-angle orientation. The operating temperature range is -40°C to 85°C (TA), making it adaptable to different environmental conditions. The component is supplied in Tape & Reel packaging.
This IR emitter is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1 Unlimited. Its compact size and specific wavelength output make it suitable for applications such as proximity sensing, optical switches, and general IR illumination.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The typical forward voltage is 1.4V at 20mA.
The maximum forward current is 65mA.
The wavelength is 850nm.
The viewing angle is 150°.
The operating temperature range is -40°C to 85°C.
It is in a 2-SMD, No Lead package.
It is packaged in Tape & Reel (TR).
