| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,910 pcs
|
3910 pcs | On Request | 1 | On Request | On Request | 18+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Junction Temperature | |
| Mounting Type | |
| Operating Temperature | |
| Orientation | |
| Peak Forward Current | |
| Power Dissipation | |
| Radiant Intensity (Ie) Min @ If | |
| Reverse Voltage | |
| Storage Temperature | |
| Tape & Reel | |
| Type | |
| Viewing Angle | |
| Voltage | |
| Wavelength |

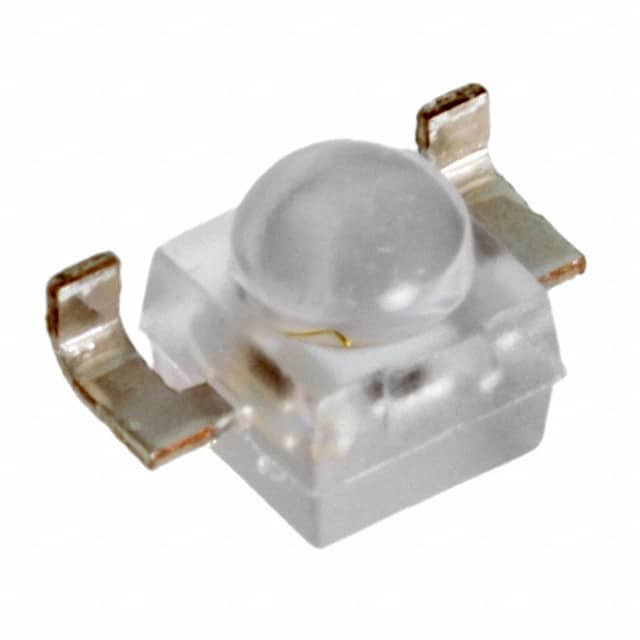

The Vishay Dale VSMB2943SLX01 is a high-speed infrared emitting diode designed for surface mounting. It utilizes GaAlAs multi quantum well (MQW) technology to deliver high radiant power and operates at a peak wavelength of 940 nm.
Key electrical specifications include a typical forward current of 100mA, a typical forward voltage of 1.35V, and a minimum radiant intensity of 20mW/sr at 100mA. The diode features a typical angle of half intensity of ±25° and a viewing angle of 50°. It is suitable for high pulse current operation.
This component is housed in a clear, untinted plastic package with a lens, specifically a 2-SMD, Gull Wing type, designed for right-angle surface mounting. The operating temperature range is -40°C to +85°C.
Applications for the VSMB2943SLX01 include IrDA compatible data transmission, miniature light barriers, photointerrupters, optical switches, remote controls, and IR touch panels. It is AEC-Q101 qualified, indicating its suitability for automotive applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The peak wavelength is 940 nm.
The typical forward current is 100 mA.
The typical forward voltage is 1.35 V.
The minimum radiant intensity is 20 mW/sr at 100mA.
The operating temperature range is -40°C to +85°C.
It is in a 2-SMD, Gull Wing package for surface mounting.
Yes, the VSMB2943SLX01 is AEC-Q101 qualified.
