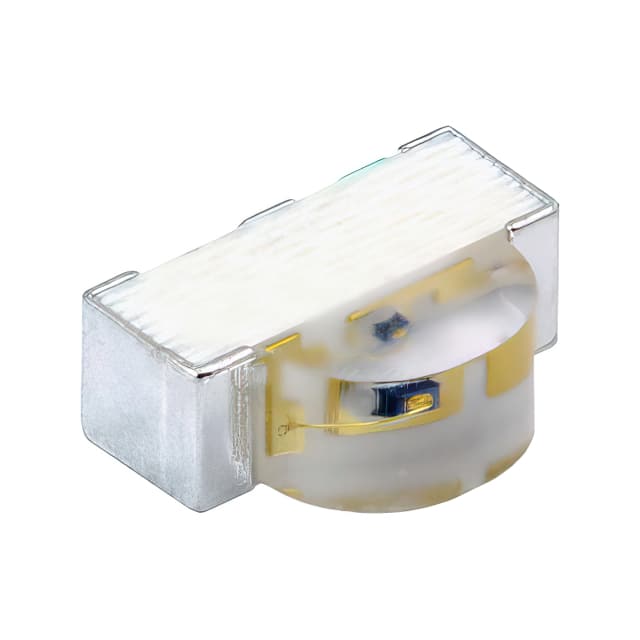

The Vishay Dale VSMB10941X01 is an infrared emitting diode utilizing GaAlAs multi quantum well (MQW) technology. It operates at a peak wavelength of 940 nm and offers high radiant power and high speed.
This component is molded in a clear, untinted plastic package with a lens, suitable for surface mounting (SMD). Key electrical specifications include a typical forward voltage of 1.2V at 20mA and a maximum forward current of 100mA. It boasts a typical radiant intensity of 1 mW/sr at 20mA and a wide angle of half intensity of ±75°.
The VSMB10941X01 is AEC-Q101 qualified, making it suitable for automotive applications. Its package dimensions are 3 x 2 x 1 mm. The operating temperature range is -55°C to +100°C, and it is RoHS3 compliant.
Applications include IR touch panels and high-performance transmissive or reflective sensors. The part is supplied on tape and reel with a minimum order quantity of 3000 pieces.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The peak wavelength is 940 nm.
The typical forward voltage is 1.2V at 20mA.
The operating temperature range is -55°C to +100°C.
It is a surface-mount, side-view, 2-SMD, No Lead package.
Yes, it is RoHS3 Compliant.
The Moisture Sensitivity Level is MSL 3.
