| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Frequency | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| SVHC Present | |
| Standard Number | |
| Storage Temperature | |
| Tape & Reel | |
| Temperature Coefficient | |
| Type | |
| Voltage | |
| Width |

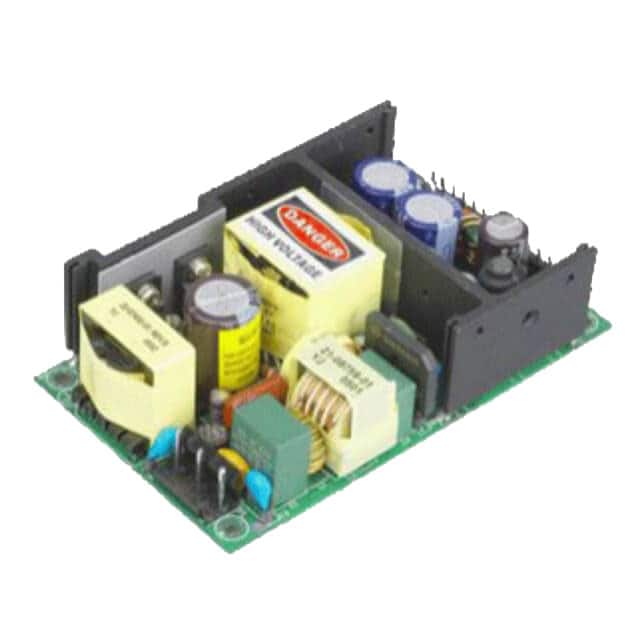

The CUI Inc. VSBU-150-18 is an AC-DC power supply from the VSBU-150 series, designed for applications requiring up to 150W of combined power. This open frame unit offers an 18V DC output voltage and operates with 88% efficiency.
Key features include active power factor correction (PFC) and a universal input voltage range of 90-264 Vac. The power supply is designed for chassis mounting and provides essential protections such as over-voltage, input surge current, and over-load protection.
With dimensions of 127.0mm x 76.2mm x 35.6mm, it is suitable for integration into various systems. The operating temperature range is 0°C to 70°C with derating, and it meets safety approvals including UL/cUL and CB Scheme.
This power supply is suitable for ITE (Commercial) applications and complies with EMI/EMC standards like CISPR 22 Class B and FCC Part 15 Class B.
The VSBU-150-18 provides an 18V DC output voltage.
The maximum output power is 150W.
The typical efficiency is 88%.
The operating temperature range is 0°C to 70°C with derating.
This AC-DC converter supports chassis mount.
Safety approvals include UL/cUL, CISPR-22 class B, FCC part 15 class B, and CB.
