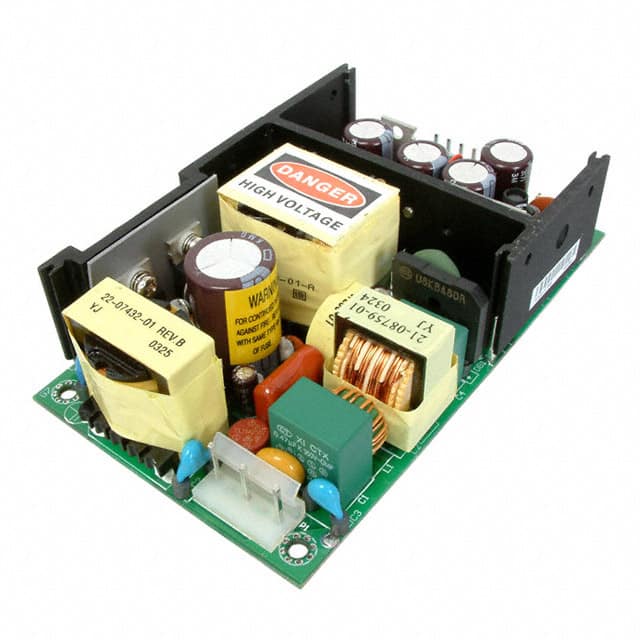

The CUI Inc. VSBU-120-15 is an AC-DC power supply designed for various applications. It delivers up to 120W of continuous power with a single output voltage of 15V and a maximum current of 8A.
This power supply operates with a universal input voltage range of 90-260 Vac and a frequency range of 47-63 Hz. It boasts an efficiency of 80% and includes active power factor correction. Key electrical specifications include line regulation of 0.5-1% and load regulation of 3-5%. Protections include over-voltage and over-current protection.
The VSBU-120-15 features an industry-standard 3" x 5" footprint, making it suitable for chassis mounting. Its dimensions are 127.0mm x 76.2mm x 32.5mm. The operating temperature range is 0°C to 70°C, with derating. It also offers high isolation voltage ratings and an MTBF of 100,000 hours.
Safety and compliance features include UL, EN, IEC, and TUV approvals, along with CISPR 22 Class B and FCC Part-15 Class B EMI/EMC standards. It is RoHS3 compliant and has an MSL rating of 1.
The output voltage is 15 Vdc.
The maximum output current is 8 A.
The output power is 120 W.
The input voltage range is 90-260 Vac.
The efficiency is 80%.
The dimensions are 127.0mm x 76.2mm x 32.5mm.
The operating temperature range is 0-70 °C.
