| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Frequency | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Storage Temperature | |
| Type | |
| Voltage | |
| Weight | |
| Width |

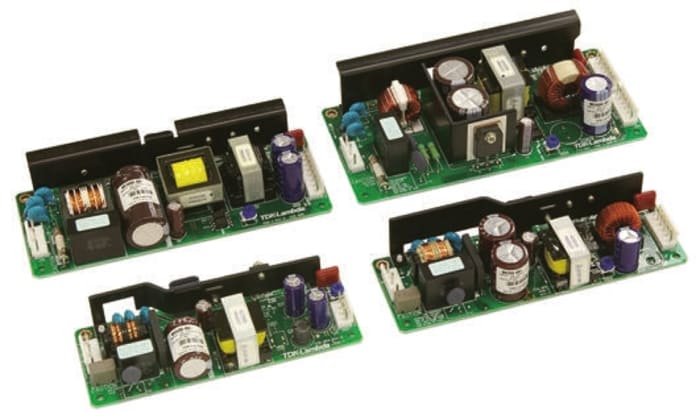

The VS50E-24 is a 60W AC-DC converter from TDK Corporation designed for applications requiring a regulated 24VDC output. It accepts an input voltage of 85-132VAC at 47-63Hz and delivers 2.5A with a typical efficiency of 85%.
The converter includes over-current protection (trip at 2.62A) and over-voltage protection (27.6-32.4VDC). It offers a voltage adjust range of 21.6-26.4VDC. Line regulation is 192mV maximum, load regulation 240mV maximum, and ripple and noise is 200mVp-p. Hold-up time is 20ms typical.
The unit is housed in a chassis-mount open frame package measuring 132.0mm x 50.0mm x 23.0mm and weighing 150g. It operates over a temperature range of -10°C to 70°C with derating above 50°C. Storage temperature is -30°C to +85°C. The converter is certified to safety standards 60950-1 and 62368-1, with CE and cURus approvals.
The operating temperature range is -10°C to 70°C with derating above 50°C.
Chassis mount, open frame.
85-132VAC.
60W maximum output power at 24VDC and 2.5A maximum output current.
85% typical efficiency.
Over-current protection (trip at 2.62A) and over-voltage protection (27.6-32.4VDC).
132.0mm x 50.0mm x 23.0mm (5.20" x 1.97" x 0.91").
