| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| Power (Watts) | |
| SVHC Present | |
| Storage Temperature | |
| Temperature Coefficient | |
| Type | |
| Voltage | |
| Weight | |
| Width |

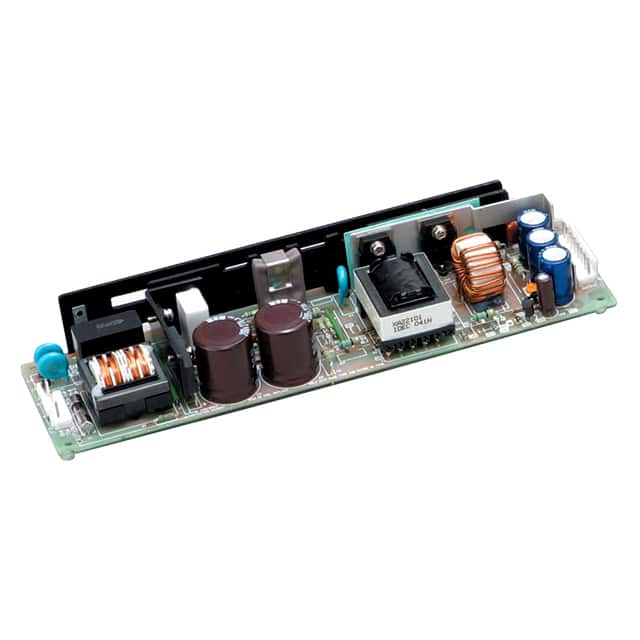

The TDK Corporation VS10C-12 is an open-frame AC/DC converter delivering 10W of power with a 12V output. This unit is designed for chassis mounting and operates within an AC input voltage range of 85-132VAC.
Key electrical specifications include a typical efficiency of 75%, an output current of 900 mA, and a line regulation of 48mV. The operating temperature range is -10°C to 70°C with derating. The converter meets safety standards such as UL60950-1, CSA60950-1, and EN60950-1, and complies with FCC Class B and VCCI-B for conducted and radiated EMI.
This series offers features like adjustable output and DC input capability. The physical dimensions are 94.0mm x 49.0mm x 17.0mm. It comes with a 2-year warranty.
The output voltage is 12V.
The maximum output current is 0.9A.
The power rating is 10W.
The operating temperature range is -10°C to 70°C with derating.
It is approved by UL60950-1, CSA60950-1, and EN60950-1.
The RoHS status is RoHS3 Compliant.
The MSL is 1 Unlimited.
