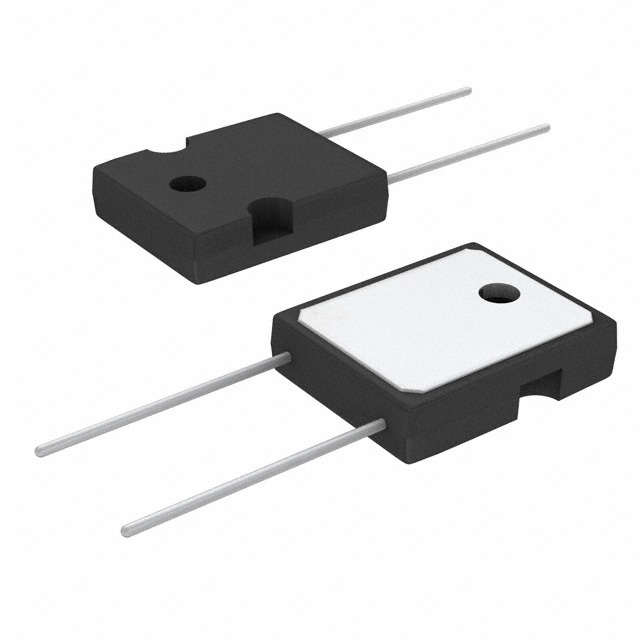

The VS-E5PH3012L-N3 is a Hyperfast Rectifier from Vishay, part of the FRED Pt G5 family. It is rated for a repetitive peak reverse voltage of 1200 V and an average rectified forward current of 30 A at TC=115°C. The device offers a typical forward voltage of 1.9 V at 30 A and 25°C, with a maximum of 2.3 V. Its typical reverse recovery time is 32 ns, enabling high frequency operation. The non-repetitive peak surge current is 250 A at 10 ms sine wave. The operating junction temperature range is -55°C to 175°C.
The rectifier is optimized for high speed operation with low conduction and switching losses, making it suitable for applications such as PFC and output rectification stages in EV/HEV battery charging stations, solar inverters, and UPS. It can be paired with MOSFETs or high speed IGBTs.
The device is packaged in a TO-247AD 2L through-hole package with matte tin plated leads, solderable per J-STD-002. The molding compound meets UL 94 V-0 flammability rating. The circuit configuration is single with base cathode.
| Qty | Low | High |
|---|---|---|
| 1+ | $5.41 | $5.41 |
| 10+ | $3.29 | $3.29 |
| 100+ | $2.59 | $2.59 |
| 500+ | $2.53 | $2.53 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
1200 V
30 A at TC=115°C, D=0.50
1.9 V typical at IF=30 A, TJ=25°C; 2.3 V maximum; 1.7 V typical at TJ=125°C
32 ns typical from datasheet; maximum value has conflict (113 ns from existing data)
TO-247AD (TO-247-2), through-hole
-55°C to 175°C
250 A at TC=45°C, tp=10 ms sine wave
