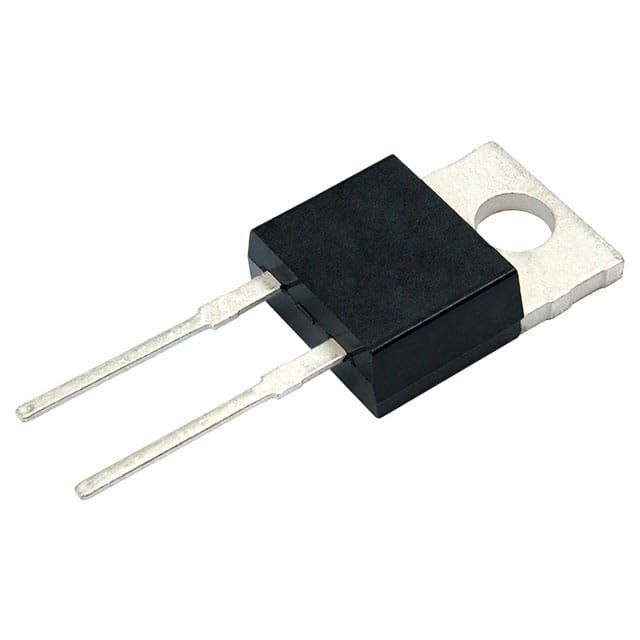

The VS-E5PH3006L-N3 is a hyperfast rectifier diode from Vishay's FRED Pt G5 series. It is designed for high-speed switching applications requiring low conduction and switching losses. The device is rated for a repetitive peak reverse voltage of 600V and an average rectified forward current of 30A at a case temperature of 123°C with a duty cycle of 0.50.
Key electrical characteristics include a typical forward voltage of 1.15V at 30A and 125°C, a maximum forward voltage of 1.6V at 25°C, and a typical reverse recovery time of 25ns. The non-repetitive peak surge current is 330A. The device operates over a junction temperature range of -55°C to 175°C.
This rectifier is optimized for soft-switched and resonant converters, as well as medium frequency hard-switching converters. It is particularly suited for improving efficiency in high-speed LLC output rectification stages of EV/HEV battery charging stations and high-frequency stages of UPS applications.
The device is housed in a TO-247AD 2L package with through-hole mounting. The molding compound meets UL 94 V-0 flammability rating, and the terminals are matte tin plated, solderable per J-STD-002.
| Qty | Low | High |
|---|---|---|
| 1+ | $5.13 | $5.13 |
| 10+ | $2.94 | $2.94 |
| 100+ | $2.41 | $2.41 |
| 500+ | $1.99 | $1.99 |
| 1,000+ | $1.98 | $1.98 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
600V.
30A at TC=123°C, D=0.50.
1.15V typical at 30A and 125°C; 1.6V maximum at 30A and 25°C.
25ns typical at TJ=25°C.
TO-247AD 2L (TO-247-2) through-hole package.
330A at TC=25°C, tp=10ms sine wave.
175°C.
