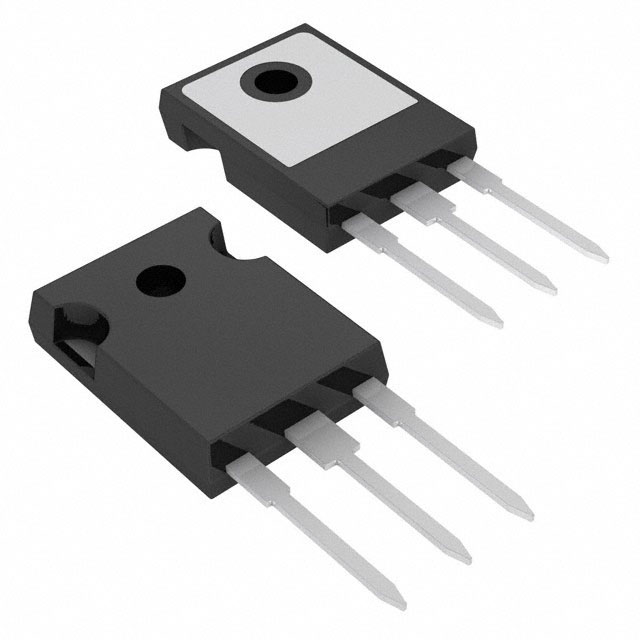

The VS-80CPQ150PBF is a center-tap Schottky rectifier diode array from Vishay General Semiconductor. It integrates two Schottky diodes in a common cathode configuration, each leg rated for 40 A average rectified current (80 A per device) with a maximum DC reverse voltage of 150 V. The device is designed for high-frequency operation and features a low forward voltage drop of 0.71 V typical at 40 A and 125 °C junction temperature.
This rectifier is optimized for low reverse leakage at high temperature, with a maximum reverse leakage current of 26 mA per leg at 125 °C. It can operate over a junction temperature range of -55 °C to 175 °C. The device is housed in a through-hole TO-247-3 package (TO-247AC), suitable for high-power applications requiring efficient thermal management.
Typical applications include switching power supplies, converters, freewheeling diodes, and reverse battery protection. The guard ring design enhances ruggedness and long-term reliability. The part is available with a lead-free (PbF) finish as indicated by the PBF suffix.
| Qty | Low | High |
|---|---|---|
| 500+ | $3.67 | $3.67 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum DC reverse voltage is 150 V.
The average rectified current is 40 A per leg and 80 A per device at a 50% duty cycle and TC = 150 °C.
The forward voltage drop is 0.71 V typical and maximum at 40 A peak and 125 °C junction temperature.
It comes in a through-hole TO-247-3 package (TO-247AC).
The operating junction temperature range is -55 °C to 175 °C.
The diode configuration is 1 pair common cathode.
