| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,000 pcs
|
2000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | 2026-02-16 21:33:16 | |
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Diode Configuration | |
| Halogen Free | |
| Mounting Type | |
| Number of Pins | |
| Operating Temperature | |
| Reverse Recovery Time (trr) | |
| Reverse Voltage | |
| Speed | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Voltage |

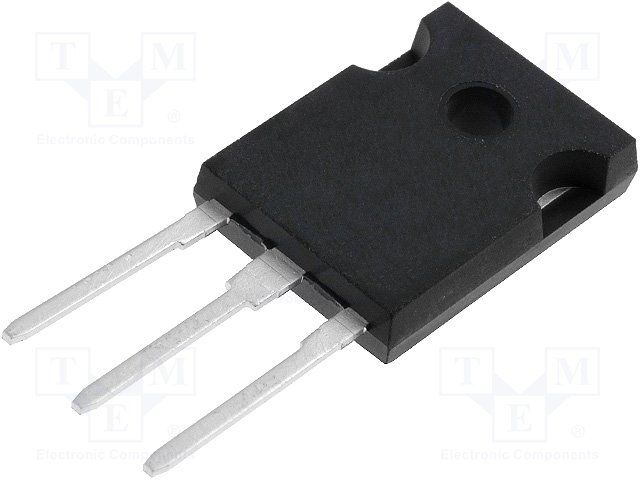

The VS-60APU02-N3 is an ultrafast soft recovery diode from Vishay's FRED Pt family, rated for 200V reverse voltage and 60A average forward current. It offers a low forward voltage drop of 0.81V typical at 175°C and a typical reverse recovery time of 28ns. The diode is designed for high frequency power conditioning systems, reducing EMI and RFI with its soft recovery characteristic. It operates over a junction temperature range of -55°C to 175°C and is housed in a through-hole TO-247AC (TO-247-3) package with a single diode configuration. Typical applications include output rectification in power converters and HF welding equipment.
| Qty | Low | High |
|---|---|---|
| 1+ | $5.78 | $5.78 |
| 10+ | $3.12 | $3.12 |
| 100+ | $2.56 | $2.56 |
| 500+ | $2.30 | $2.30 |
| 1,000+ | $2.11 | $2.11 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
200 V.
60 A at case temperature 127°C.
0.98 V at 60 A and 25°C, and 0.81 V at 60 A and 175°C.
28 ns typical (test conditions not specified).
TO-247-3 (TO-247AC) through-hole package.
-55°C to 175°C.
87 pF at 200 V reverse voltage.
