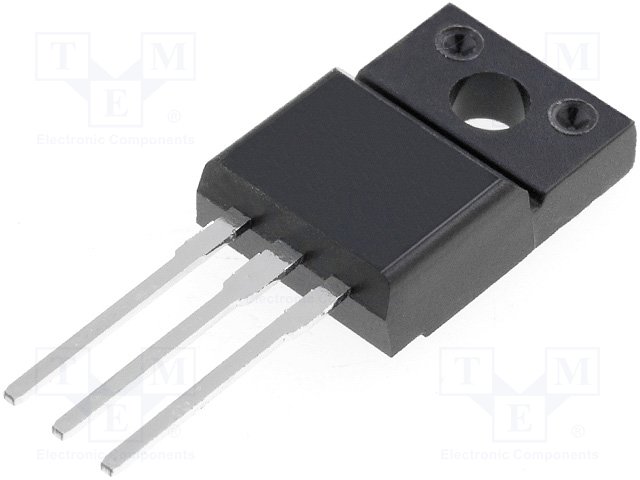

VS-25TTS12FP-M3 The Vishay VS-25TTS12FP-M3 is a Silicon Controlled Rectifier (SCR) with a maximum repetitive reverse voltage of 1.2 kV and an RMS current rating of 25 A. It is housed in a TO-220AB Full-Pak package for through-hole mounting.
Mfr Part #:

VS-25TTS12FP-M3

Available from 1 distributors
Mfr Name: Vishay
Vishay
The Vishay VS-25TTS12FP-M3 is a Silicon Controlled Rectifier (SCR) with a maximum repetitive reverse voltage of 1.2 kV and an RMS current rating of 25 A. It is housed in a TO-220AB Full-Pak package for through-hole mounting.
✓ Total Stock: 40 pcs
$ Price Range: $2.71

VS-25TTS12FP-M3 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
40 pcs
On Request
40 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

VS-25TTS12FP-M3 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Halogen Free
Height
Lead Spacing
Lead Style
Length
Mounting Type
Number of Pins
Storage Temperature
Width
View Similar Products (0)

VS-25TTS12FP-M3 Description

Short technical summary and product information.

The Vishay VS-25TTS12FP-M3 is a Silicon Controlled Rectifier (SCR) designed for power control applications. It features a high repetitive reverse voltage rating of 1.2 kV and a continuous RMS current handling capability of 25 A.



Key electrical parameters include a hold current of 100 mA and a leakage current of 10 mA. The SCR operates within a temperature range of -40 °C to 125 °C.



Mechanically, the VS-25TTS12FP-M3 is supplied in a TO-220AB Full-Pak package, designed for through-hole mounting. Its dimensions are 9.8 mm in height, 10.63 mm in length, and 4.83 mm in width.



This component is suitable for various power switching and control circuits where reliable high-voltage and high-current rectification is required.

VS-25TTS12FP-M3 Quick Information

Product Type: SCR
Series: 25TTS
Canonical Name: Vishay VS-25TTS12FP-M3 SCR
Subcategory: SCR

VS-25TTS12FP-M3 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

VS-25TTS12FP-M3 Estimated Pricing

Qty Low High
1+ $2.71 $2.71

Estimated market price range - modelled values for guidance only, not live distributor offers.

VS-25TTS12FP-M3 Features

  • Rated for 25A continuous RMS current operation.
  • Withstands 1200V repetitive peak reverse voltage.
  • Operates reliably from -40°C to 125°C ambient.
  • Low 100mA hold current maintains conduction state.
  • TO-220AB Full-Pak enables efficient thermal dissipation.

VS-25TTS12FP-M3 Applications

  • Ideal for high-power motor drive inverters.
  • Used in industrial AC power control circuits.
  • Suitable for battery charging system regulators.
  • Applied in welding equipment power stages.
  • Deployed in renewable energy grid tie inverters.

VS-25TTS12FP-M3 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the maximum repetitive peak reverse voltage?

1200 V

Which package style does this component utilize?

TO-220AB Full-Pak

What is the valid operating temperature range?

-40 °C to 125 °C

What is the continuous RMS current rating?

25 A

How many pins does the package contain?

3

What mounting method is recommended for installation?

Through Hole
