| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
96,000 pcs
|
96000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | 2026-02-16 21:33:16 | |
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Halogen Free | |
| Junction Capacitance | |
| Mounting Type | |
| Operating Temperature | |
| Reverse Recovery Time | |
| SVHC Present | |
| Speed | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Voltage |
The VS-12EWH06FN-M3 is a hyperfast recovery rectifier from Vishay's FRED Pt family, designed for high-efficiency power conversion. It delivers an average rectified forward current of 12 A at a case temperature of 132 °C and withstands a peak repetitive reverse voltage of 600 V. The device exhibits a typical forward voltage of 1.34 V at 12 A and 125 °C, with a maximum forward voltage of 2.5 V at 25 °C. Its hyperfast recovery time of 18 ns typical minimizes switching losses, making it suitable for high-frequency applications.

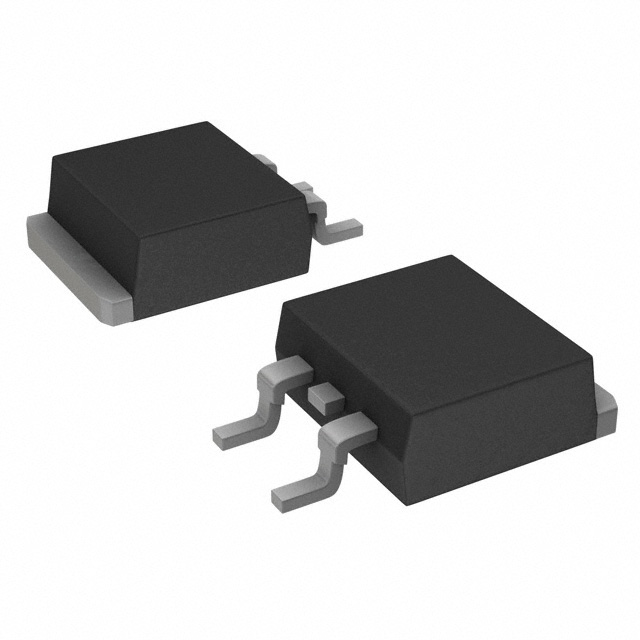

The rectifier is housed in a surface-mount DPAK (TO-252AA) package, offering a compact footprint for automated assembly. It operates over a junction temperature range of -65 °C to 175 °C and is rated for MSL level 1 per J-STD-020. The planar structure and platinum-doped lifetime control ensure ruggedness and reliability.
Typical applications include power factor correction (PFC) boost stages in AC/DC sections of switched-mode power supplies (SMPS) and as freewheeling diodes. The low stored charge and soft recovery characteristic reduce ringing and electromagnetic interference.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.38 | $2.38 |
| 10+ | $1.14 | $1.14 |
| 75+ | $0.92 | $0.92 |
| 525+ | $0.81 | $0.81 |
| 1,050+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The average rectified forward current is 12 A at a case temperature of 132 °C.
The peak repetitive reverse voltage is 600 V.
The typical forward voltage is 1.34 V at 12 A and 125 °C junction temperature.
The typical reverse recovery time is 18 ns.
It comes in a DPAK (TO-252AA) surface-mount package.
The maximum operating junction temperature is 175 °C.
