| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Automotive Grade | |
| Composition | |
| Features | |
| Insulation Voltage | |
| Max. resistance change at rated dissipation for resistance range, |ΔR/R| max., after 1000 h | |
| Maximum noise (white noise) | |
| Number of Terminations | |
| Operating Temperature | |
| Operating Voltage | |
| Permissible film temperature | |
| Power (Watts) | |
| Resistance | |
| Supplier Device Package | |
| Temperature Coefficient | |
| Thermal Resistance (Rth) | |
| Tolerance |

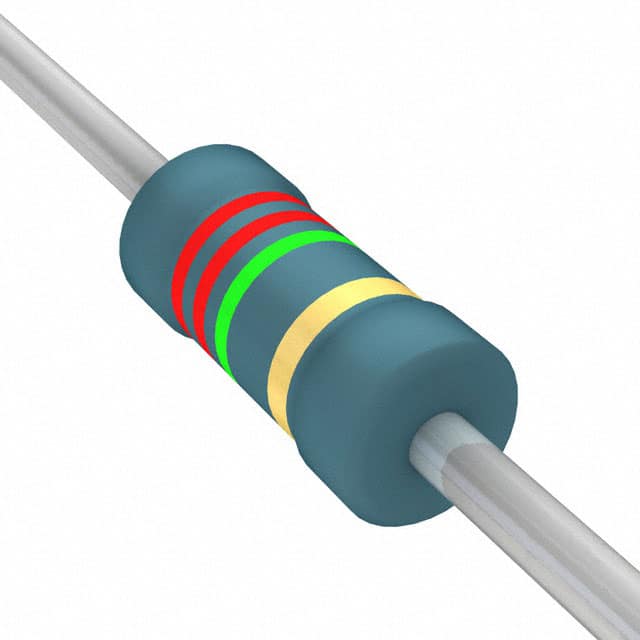

The Vishay Dale VR25000002204JA100 is a high-quality metal film resistor designed for through-hole applications. It features a resistance value of 2.2 MΩ with a tight tolerance of ±5% and a power rating of 0.25W.
This resistor is built on a high-grade ceramic body with a metal glazed film deposited on it. It is coated with a light blue lacquer for electrical, mechanical, and climatic protection, and the encapsulation is resistant to cleaning solvents per IEC 60068-2-45.
With an operating temperature range of -55°C to +155°C, this component is suitable for applications requiring high resistance, stability, and reliability, including automotive electronics and power supplies. It also meets safety requirements and is AEC-Q200 qualified.
The axial package measures 0.098" Dia x 0.256" L (2.50mm x 6.50mm), making it suitable for standard through-hole mounting.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.01 | $0.01 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 2.2 MΩ.
The tolerance is ±5%.
The power rating is 0.25W.
The temperature coefficient is ±200ppm/°C.
The operating temperature range is -55°C to +155°C.
The dimensions are 0.098" Dia x 0.256" L (2.50mm x 6.50mm).
Yes, it is AEC-Q200 qualified.
