| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
99 pcs
|
99 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
99 pcs
|
99 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC-Q200 Qualification | |
| Automotive Grade | |
| Composition | |
| Cqc Qualification | |
| DIN Size | |
| Features | |
| High Pulse Loading Capability | |
| IEC 62368-1 Qualification | |
| Insulation Voltage | |
| Max. Resistance Change at Rated Dissipation | |
| Maximum Noise | |
| Number of Terminations | |
| Operating Temperature | |
| Operating Temperature Range | |
| Operating Voltage | |
| Permissible film temperature | |
| Power (Watts) | |
| Rated Dissipation | |
| Resistance | |
| Resistance Range | |
| Resistance Tolerance | |
| Supplier Device Package | |
| Temperature Coefficient | |
| Thermal Resistance | |
| Tolerance | |
| UL1676 Qualification |

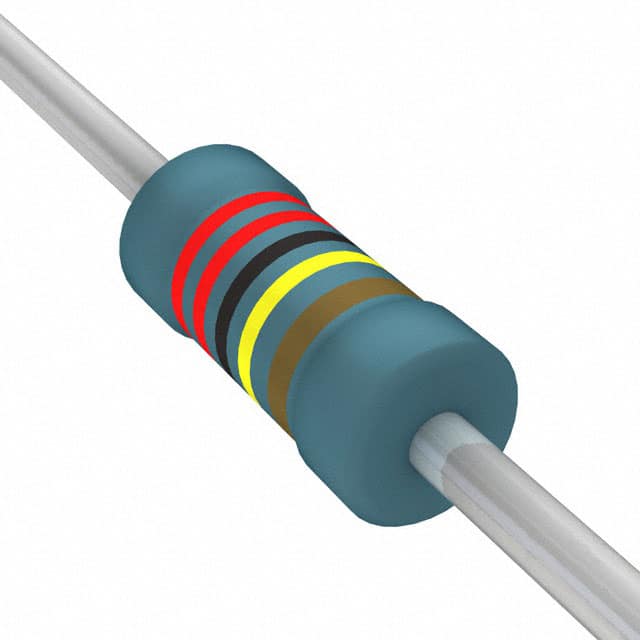

This Vishay Dale VR25000002204FA100 is a high ohmic, high voltage metal glaze leaded resistor. It features a resistance value of 2.2 MΩ with a tight tolerance of ±1% and a power rating of 0.25W (1/4W).
The resistor is constructed with a metal film on a ceramic body and has tinned copper wires welded to end-caps. It is coated with a light blue lacquer for protection. The operating temperature range is -55°C to +155°C, with a permissible film temperature of 155°C.
Designed for applications requiring high resistance, stability, and reliability at high voltages, this component is suitable for high humidity environments, white goods, power supplies, and automotive electronics. It meets safety requirements including UL1676 and IEC 62368-1, and is AEC-Q200 qualified.
The component has an axial package with dimensions of 0.098" Dia x 0.256" L (2.50mm x 6.50mm). It has 2 terminations and is composed of metal film.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.01 | $0.01 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 2.2 megaohms.
The resistance tolerance is ±1%.
The power rating is 0.25 W.
The operating temperature range is -55°C to 155°C.
It uses an axial package.
Yes, it is qualified under AEC-Q200 standards.
