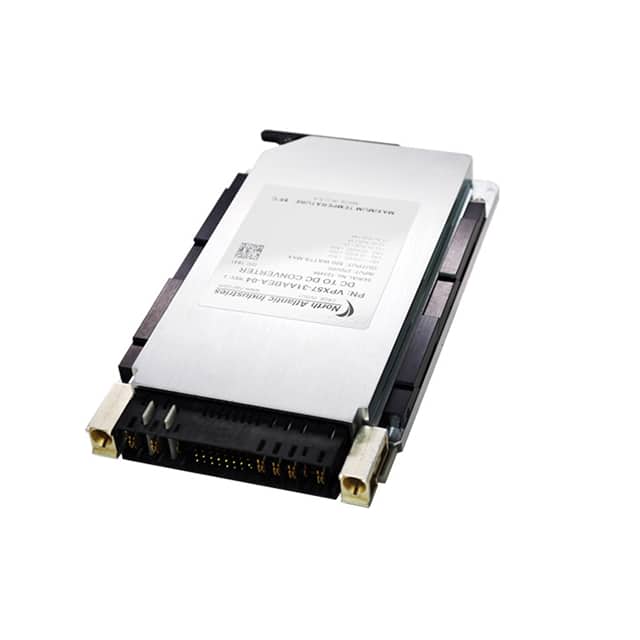

VPX57-31AABEA-00 The North Atlantic Industries VPX57-31AABEA-00 is a 500W DC DC converter. It features an enclosed, conformal coated design with chassis mount.
Mfr Part #:

VPX57-31AABEA-00

Mfr Name: North Atlantic Industries (NAI)
North Atlantic Industries (NAI)
The North Atlantic Industries VPX57-31AABEA-00 is a 500W DC DC converter. It features an enclosed, conformal coated design with chassis mount.
Stock on Request

VPX57-31AABEA-00 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Current
Efficiency
Height
Length
Mounting Type
Number of Outputs
Operating Temperature
Output Current
Power (Watts)
Type
Voltage
Width

VPX57-31AABEA-00 Description

Short technical summary and product information.

The North Atlantic Industries VPX57-31AABEA-00 is a 500W DC DC converter designed for ITE (Commercial) applications. It operates with an input voltage range of 220V to 320V and provides six distinct output voltages: 12V, 3.3V, 5V, and 12V, with corresponding maximum output currents of 30A, 20A, 40A, 1A, 1A, and 4A.



This converter features an efficiency of 87% and an isolation voltage of 1 kV. It is built with an enclosed and conformal coated construction, suitable for chassis mounting. The operating temperature range is from -40°C to 85°C, making it robust for various environmental conditions. Its dimensions are 168.5mm x 100.0mm x 24.6mm.



The VPX57-31AABEA-00 is RoHS3 Compliant, has an MSL of 1 Unlimited, and is REACH Unaffected. These compliance attributes indicate adherence to certain environmental and safety standards.

VPX57-31AABEA-00 Quick Information

Product Type: DC DC Converter
Canonical Name: VPX57-31AABEA-00 DC/DC Converter
Subcategory: DC DC Converters

VPX57-31AABEA-00 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

VPX57-31AABEA-00 Features

  • 500W DC DC converter for commercial applications.
  • Input voltage range of 220V to 320V.
  • Six output voltages with high current ratings.
  • Enclosed, conformal coated, chassis mount design.
  • Wide operating temperature range of -40°C to 85°C.

VPX57-31AABEA-00 Applications

  • Suitable for ITE commercial applications.
  • Provides multiple regulated DC outputs.
  • Designed for robust environmental conditions.
  • Chassis mount for easy integration.

VPX57-31AABEA-00 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the input voltage range for the VPX57-31AABEA-00?

The input voltage range is 220V to 320V.

How many outputs does the VPX57-31AABEA-00 have?

It has 6 outputs.

What are the output voltages and currents for the VPX57-31AABEA-00?

The output voltages are 12V, 3.3V, 5V, and 12V, with maximum currents of 30A, 20A, 40A, 1A, 1A, and 4A respectively.

What is the power rating of the VPX57-31AABEA-00?

The power rating is 500W.

What is the operating temperature range for this DC DC converter?

The operating temperature range is -40°C to 85°C.

What type of mounting does the VPX57-31AABEA-00 use?

It uses chassis mount.
