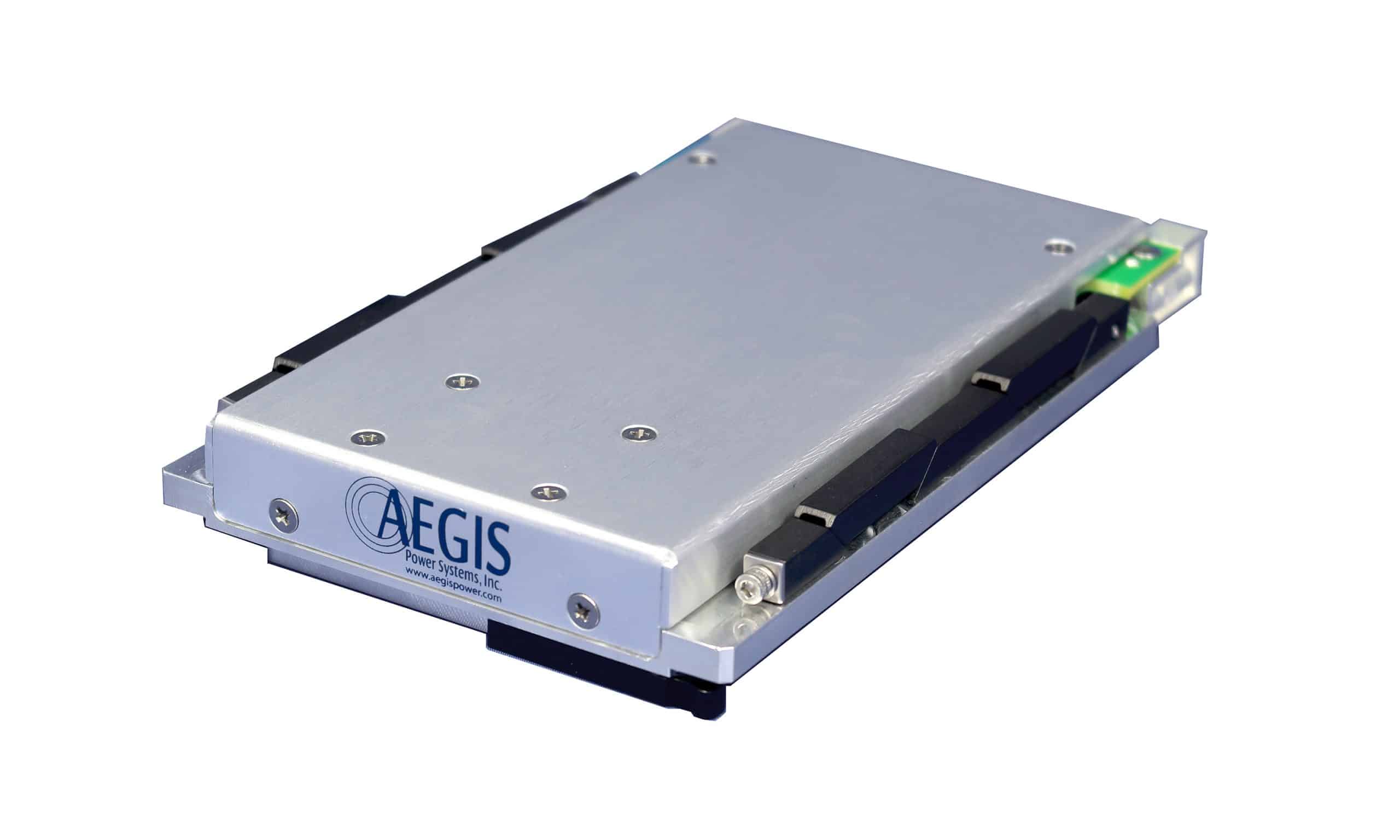

The Aegis Power Systems VPX1PH3UC310 is a single-phase AC-DC power supply designed for modular open systems architectures, aligning with the SOSA technical standard. It provides a total output power of 310 watts, with specific outputs including +12Vdc at 310W and +3.3Vdc (Aux) at 66W, alongside four other unspecified outputs. The unit accepts a wide input voltage range of 85-264VAC and features 0.99 power factor correction for high efficiency.
This rugged, enclosed power supply is suitable for harsh environments, operating from -40°C to 85°C. It includes built-in EMI filtering and protections against over/under voltage, current, and temperature, as well as surge protection. The VPX1PH3UC310 is SWaP optimized with a 3U form factor and 5HP single-slot dimensions, interoperable per VITA 48.2 standards. Its features also include I2C sensor monitoring and IPMC redundancy. This power supply is designed for C5ISR applications such as radar, communications, electronic warfare, and electro-optical defense equipment.
85-264 VAC.
Main +12V output and auxiliary +3.3V output.
310W.
-40°C to 85°C.
Yes, with typical PFC of 0.99.
89%.
Chassis mount, enclosed package.
