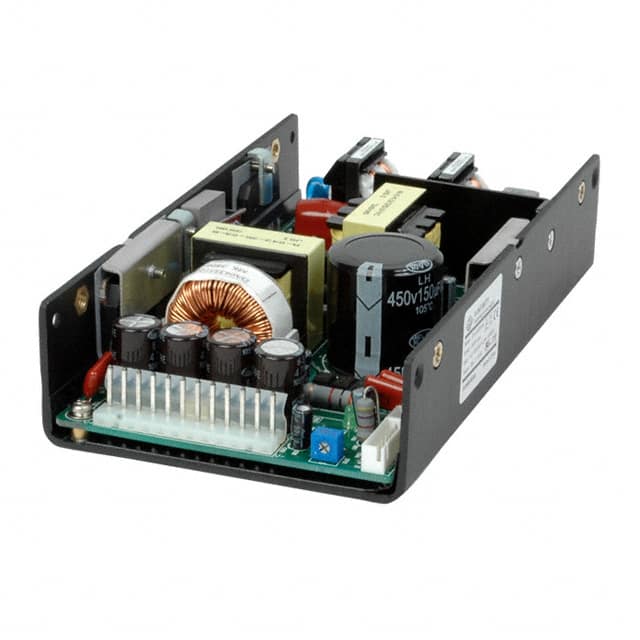

The CUI Inc. VPU-S200-15 is a 200W AC-DC power supply designed for various applications. It provides a single 15V output with a maximum current of 13.3A.
Key electrical specifications include a universal input voltage range of 85-264 Vac or 120-340 Vdc, an efficiency of 78%, and active power factor correction. The unit offers protections against overload, over voltage, and short circuits.
This power supply is housed in an open frame, U-frame design suitable for chassis mounting. It operates within a temperature range of -10°C to 65°C with derating and includes features like remote on/off and remote sense capabilities.
The operating temperature range is -10°C to 65°C with derating.
It provides a nominal 15 Vdc output with a maximum current of 13.3 A.
It accepts 85-264 Vac.
Yes, it accepts 120-340 Vdc input.
It includes overload protection at 105%, over current protection at 105%, over voltage protection at 115-140%, and short circuit protection.
It measures 172.7 mm x 96.5 mm x 38.1 mm and is chassis mount with an open-frame design.
It holds UL/cUL 60950, TUV EN60950, CE, and CB approvals.
