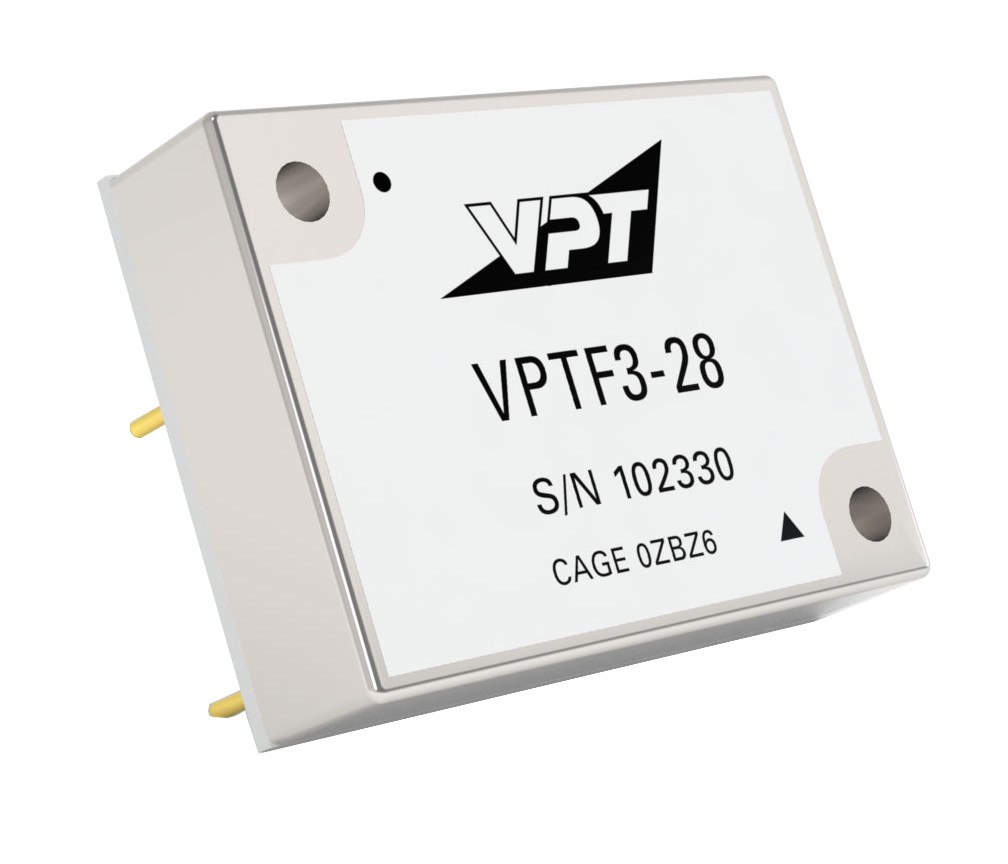

The VPTF3-28 series EMI filter from VPT is a cost-effective solution for high-reliability applications requiring conducted emissions filtering. It is designed to work with VPT series DC-DC converters to meet MIL-STD-461C/D/E conducted emissions requirements.
Key electrical specifications include a maximum output current of 3.0 Amps and a maximum output power of 75 Watts. The filter supports a wide input voltage range from 0 to 50 Volts, withstanding high input transient voltages up to 80 Volts for 1 second per MIL-STD-704A. It provides a minimum attenuation of 55 dB at 500 kHz.
Designed for harsh environments, the VPTF3-28 operates within a wide temperature range of -55 °C to 105 °C. It is tested to standards such as JESD22, MIL-STD-810, and MIL-STD-883. The product is manufactured in a facility certified to ISO9001, J-STD-001, and IPC-A-610.
Packaging options include a standard six-sided non-hermetic rugged metal package or an optional six-sided rugged epoxy encapsulated V-SHIELD® package. The dimensions are 1.585” x 1.175” x 0.400”, with a maximum weight of 30 grams. The V-SHIELD® package is fully compatible with aqueous cleaning processes.
The VPTF3-28 has a maximum output current of 3.0 Amps.
The maximum output power for the VPTF3-28 is 75 Watts.
The VPTF3-28 supports a wide input voltage range from 0 to 50 Volts.
The VPTF3-28 operates in a wide temperature range from -55 °C to 105 °C.
The VPTF3-28 provides a minimum attenuation of 55 dB at 500 kHz.
The VPTF3-28 is available in a standard rugged metal package or an optional rugged epoxy encapsulated V-SHIELD® package.
