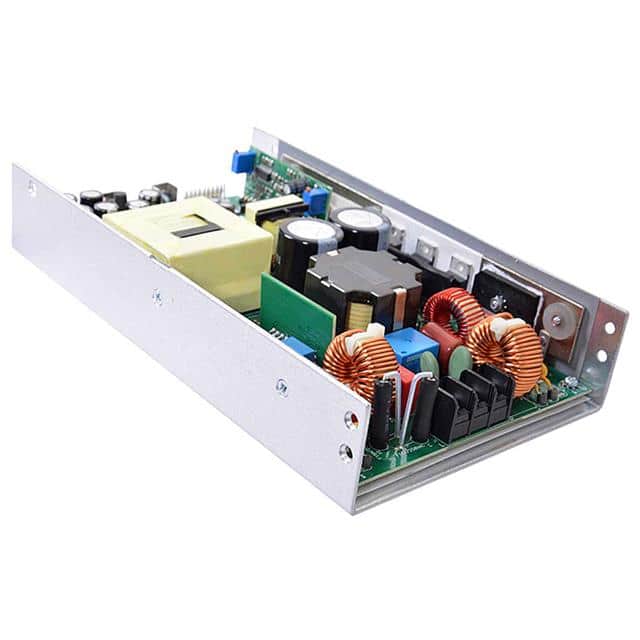

The EOS Power VPS800-1012-R is an open frame AC/DC converter designed for ITE (Commercial) applications. It provides a single 12V output with a continuous power rating of 300W, capable of reaching 400W with forced air cooling. The converter boasts high efficiency of 93% and operates within a wide input voltage range of 85-264 VAC or 120-390 VDC.
Key electrical features include adjustable output, DC input capability, load sharing, PFC, remote on/off, remote sense, and a standby output. The unit offers 4 kV isolation voltage and operates reliably in temperatures from -40°C to 70°C with derating. Its dimensions are 216.0mm x 127.0mm x 41.0mm, and it is designed for chassis mounting.
Compliance is met with agencies such as CB, CE, cUL, NEMKO, and UL, adhering to standard 62368-1. The RoHS status is listed as RoHS3 Compliant, Moisture Sensitivity Level is 1, and REACH status is Unaffected, though these are noted with low confidence.
The output voltage is 12V.
The output current is 33.33A.
The power rating is 300W, or 400W with forced air.
The efficiency is 93%.
The operating temperature range is -40°C to 70°C with derating.
The dimensions are 216.0mm x 127.0mm x 41.0mm.
It uses chassis mount.
