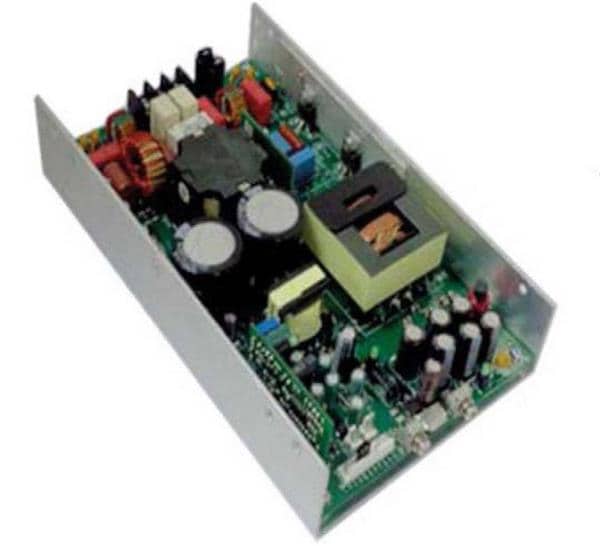

The EOS Power VPS600-1T15 is an enclosed AC/DC converter designed for ITE (Commercial) applications. It provides a 225W power output with a 15A current rating and a single output.
Key electrical specifications include a universal input, 93% efficiency, and adjustable output capabilities. Features such as Load Sharing, PFC, Remote On/Off, Remote Sense, and a Standby Output enhance its functionality. The converter is rated for 4 kV voltage and operates within a temperature range of -40°C to 70°C with derating.
Mechanically, this unit is designed for chassis mounting and has dimensions of 216.0mm x 127.0mm x 41.0mm. It complies with standard 62368-1 and holds approvals from CB, CE, cUL, NEMKO, and UL.
15V at 15A (225W).
93%.
Chassis mount.
CB, CE, cUL, NEMKO, UL.
-40°C to 70°C with derating.
216mm x 127mm x 41mm (8.50" x 5.00" x 1.61").
Yes, Power Factor Correction (PFC) is included.
