| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

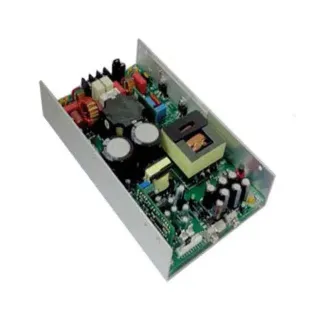

The EOS Power VPS600-1012 is a 300W open frame AC/DC converter designed for commercial ITE (Information Technology Equipment) applications. It delivers a single 12V output at 25A with a high efficiency rating of 93%.
This converter features a universal input and includes adjustable output, load sharing, power factor correction (PFC), remote on/off, remote sense, and a standby output. It is chassis mountable and measures 216.0mm x 127.0mm x 41.0mm.
The VPS600-1012 is approved by CB, CE, cUL, NEMKO, and UL agencies and complies with safety standard 62368-1. It operates over a temperature range of -40°C to 70°C with derating and provides 4 kV of voltage isolation.
The VPS600-1012 provides a single output of 12V at 25A.
The VPS600-1012 is rated for 300W.
The VPS600-1012 has an efficiency of 93%.
The operating temperature range is -40°C to 70°C with derating.
The VPS600-1012 is designed for chassis mount.
The dimensions are 216.0mm (length) x 127.0mm (width) x 41.0mm (height).
