| Category | |
| Manufacturer Name | |
| Compliance | |
| Efficiency | |
| Input Frequency | |
| Input Voltage | |
| Length | |
| Mounting Style | |
| Number of Outputs | |
| Output Power | |
| Output Type | |
| SVHC Present | |
| Width |

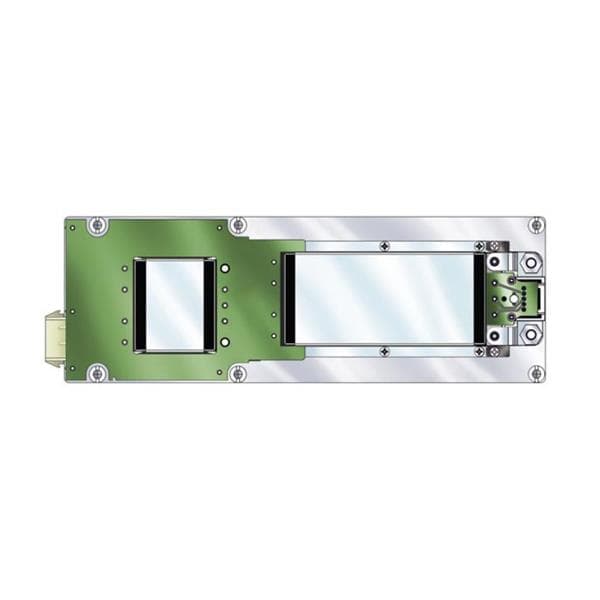

The Vicor VP-F1640799 is an enclosed AC/DC power system from the VCAD series, designed for industrial applications. This unit delivers 500W of output power and operates with a wide input voltage range of 90 VAC to 264 VAC, accommodating both 115V and 230V mains.
Key electrical specifications include an efficiency rating between 70% and 80%, a regulated load output, and an isolation voltage of 3 kV. The power supply features a single output and operates with an input frequency of 50 Hz or 60 Hz. Its mechanical design is for chassis mounting, with dimensions of 80 mm in width and 232.4 mm in length.
Compliance and approvals for the VP-F1640799 include CE, cTUVus, EN60950-1, and UL60950-1, indicating suitability for various international markets. The unit is enclosed, providing protection for internal components. This power system is suitable for applications requiring a reliable and robust power conversion solution within industrial environments.
The output power is 500 W.
The input voltage range is 90 VAC to 132 VAC and 180 VAC to 264 VAC.
It uses chassis mounting.
Approvals include CE, cTUVus, EN60950-1, and UL60950-1.
The efficiency ranges from 70% to 80%.
The isolation voltage is 3 kV.
