| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
200,000 pcs
|
200000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Collector-Emitter Voltage | |
| Current | |
| Current Transfer Ratio (Max) | |
| Current Transfer Ratio (Min) | |
| Current Transfer Ratio (Nominal) | |
| Fall Time | |
| Input Type | |
| Mounting Type | |
| Number of Channels | |
| Operating Temperature | |
| Output Type | |
| Rise | |
| Supplier Device Package | |
| Turn On | |
| Vce Saturation (Max) | |
| Voltage |

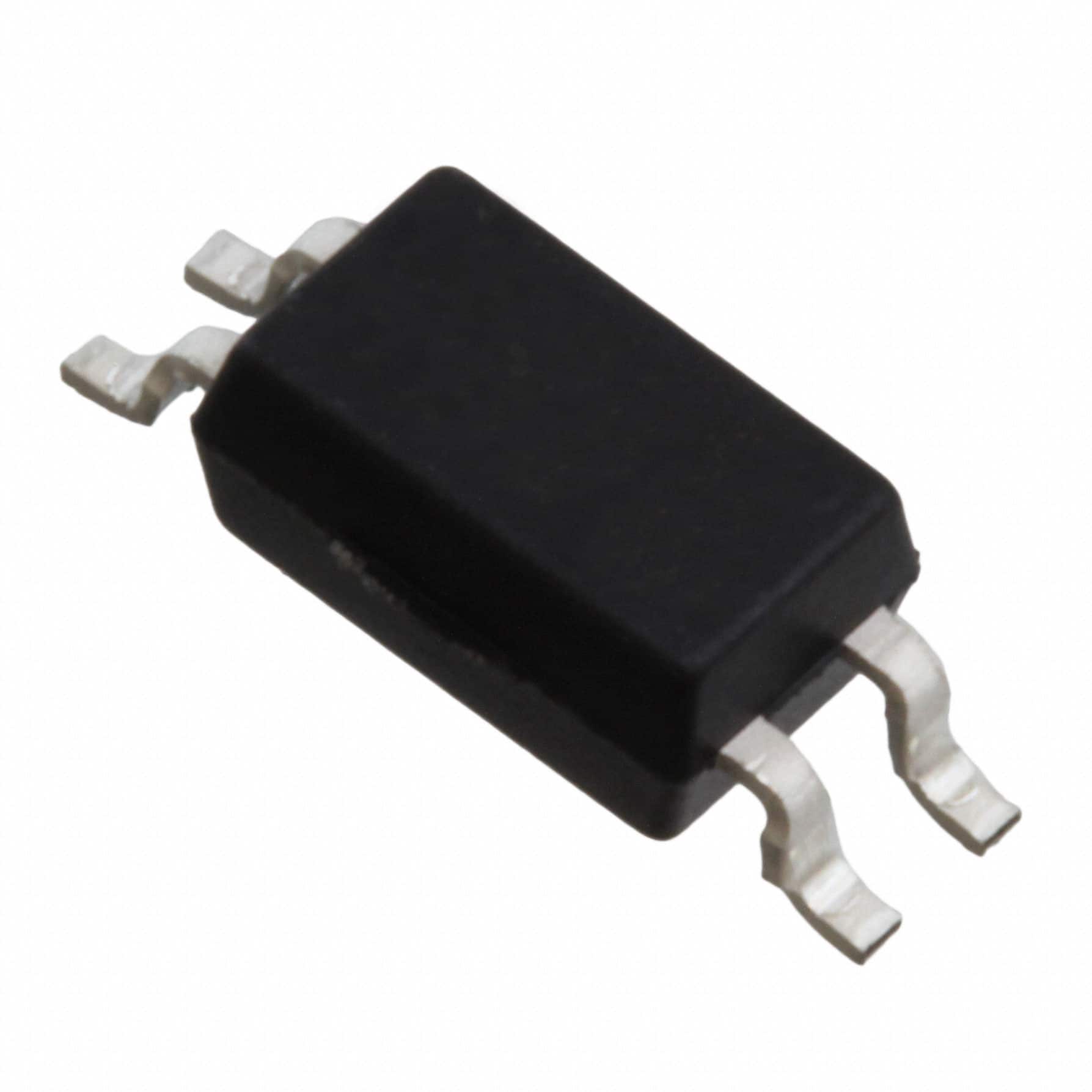

The Vishay Dale VOS618A-X001T is an optocoupler designed for signal transmission between electrically separated circuits. It features a GaAs infrared emitting diode coupled to a silicon planar phototransistor detector.
Key electrical specifications include a high isolation test voltage of 3750 VRMS and a collector-emitter voltage of 80V. The current transfer ratio ranges from a minimum of 50% at 1mA to a maximum of 600% at 1mA. It offers a typical rise time of 5µs and a turn-on time of 5µs, with a fall time of 12µs. The Vce saturation is a maximum of 400mV.
This device operates within a temperature range of -55°C to 110°C. It is a single-channel device with a DC input type and a transistor output. The optocoupler is designed for surface mounting and comes in a 4-SSOP package, also described as a 4-SOIC with a 4.40mm width.
Applications for this optocoupler include telecom, industrial controls, battery-powered equipment, office machines, and programmable controllers.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.39 | $0.39 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The isolation test voltage is 3750 VRMS.
The current transfer ratio is a minimum of 50% and a maximum of 600% at 1mA input current.
The operating temperature range is -55°C to 110°C.
The optocoupler is available in a 4-SSOP package and a 4-SOIC package (0.173", 4.40mm Width).
Yes, the RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level is 1 Unlimited.
