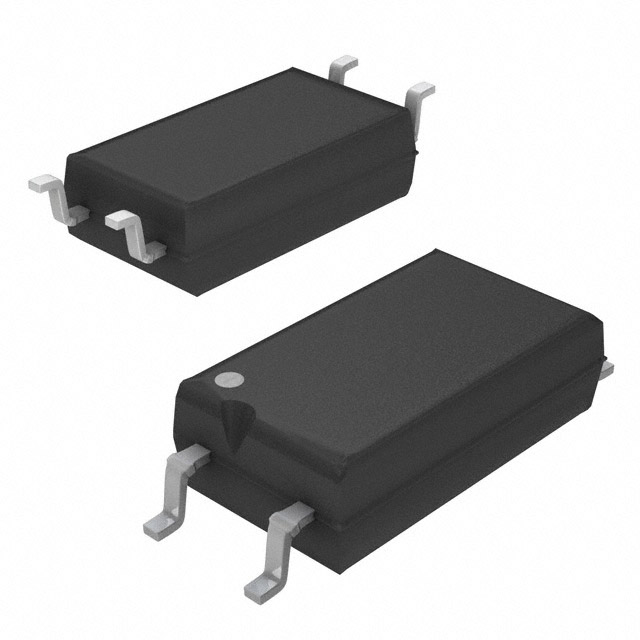

The Vishay VOL617A-1X001T is an optocoupler featuring a GaAs infrared emitting diode coupled to a silicon planar phototransistor detector. It is housed in a 4-pin LSOP wide body package, suitable for surface mounting.
Key electrical specifications include a high isolation test voltage of 5000 VRMS and a peak repetitive off-state voltage of 1050 Vpeak. The device supports an output current of up to 60 mA with a Vce saturation of 400mV maximum. It offers a minimum current transfer ratio of 40% at 5mA and a maximum of 80% at 5mA, with typical rise and fall times of 3.5µs and 5µs respectively, and turn-on/off times of 6µs and 5.5µs.
This optocoupler operates within a temperature range of -55°C to 110°C. It is designed for applications requiring signal transmission between electrically separated circuits, such as telecom, industrial controls, battery powered equipment, office machines, and programmable controllers.
The package is a 4-SMD, Gull Wing type, with a supplier package designation of 4-SOP. The mounting type is Surface Mount.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.39 | $0.39 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The isolation test voltage is 5000 VRMS.
The operating temperature range is -55°C to 110°C.
The minimum current transfer ratio is 40% at 5mA.
The maximum output current is 60 mA.
It is a 4-SMD, Gull Wing package, also referred to as 4-SOP.
