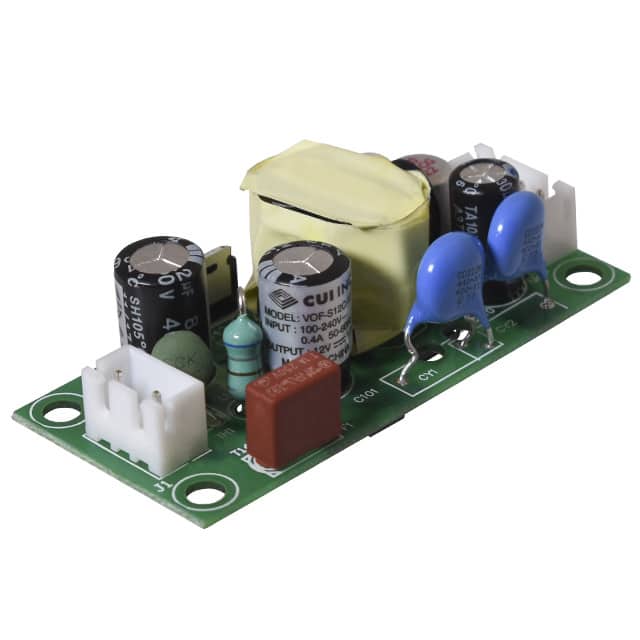

The CUI Inc. VOF-S12C-9 is a versatile AC-DC power supply designed for various applications. It provides a stable 9VDC output with a maximum current of 1.34A, totaling 12W of power. The unit operates with a universal input voltage range from 90 to 264 Vac, making it suitable for global use.
Key electrical specifications include an efficiency rating of 85% at full load and 230 Vac input. It offers features such as short circuit protection and over voltage protection. The power supply is designed to meet IEC/EN 60335 standards and is certified to IEC/EN/UL 62368-1.
With its compact dimensions of 54.6mm x 25.4mm x 14.0mm and chassis mount type, the VOF-S12C-9 is suitable for integration into systems requiring an open frame power solution. It operates within a wide temperature range of -40°C to 75°C with derating.
The nominal output voltage is 9 Vdc.
The maximum output current is 1.34 A.
The maximum output power is 12W.
The typical efficiency is 85%.
The universal input voltage range is 90 to 264 Vac.
The dimensions are 54.6mm x 25.4mm x 14.0mm.
The operating temperature range is -40°C to 75°C (With Derating).
